State of the Ecosystem and EAFM Risk Assessment: Mid-Atlantic

class: right, middle, my-title, title-slide

# State of the Ecosystem and EAFM Risk Assessment: Mid-Atlantic
## MAFMC 5 April 2022
### Sarah Gaichas Northeast Fisheries Science Center Many thanks to: Kimberly Bastille, Geret DePiper, Kimberly Hyde, Scott Large, Sean Lucey, Laurel Smith and all SOE contributors; Brandon Muffley and all MAFMC Staff for Risk Assessment updates

---

class: top, left

# State of the Ecosystem (SOE) reporting
## Improving ecosystem information and synthesis for fishery managers

.pull-left[

- Ecosystem indicators linked to management objectives <a name=cite-depiper_operationalizing_2017></a>([DePiper, et al., 2017](https://academic.oup.com/icesjms/article/74/8/2076/3094701))
 + Contextual information
 + Report evolving since 2016
 + Fishery-relevant subset of full Ecosystem Status Reports

- Open science emphasis <a name=cite-bastille_improving_2020></a>([Bastille, et al., 2020](https://doi.org/10.1080/08920753.2021.1846155))

- Used within Mid-Atlantic Fishery Management Council's Ecosystem Process <a name=cite-muffley_there_2020></a>([Muffley, et al., 2020](https://doi.org/10.1080/08920753.2021.1846156))

]

.pull-right[
*The IEA Loop1*
![IEA process from goal setting to assessment to strategy evaluation with feedbacks](EDAB_images/iea-loop.png)

.footnote[
[1] https://www.integratedecosystemassessment.noaa.gov/national/IEA-approach
]
]
???

---
## State of the Ecosystem: Maintain 2021 structure for 2022
.pull-left[

## 2022 Report Structure
1. Graphical summary
    + Page 1 report card re: objectives &rarr;
    + Page 2 risk summary bullets
    + Page 3 synthesis themes
1. Performance relative to management objectives
1. Risks to meeting management objectives

]

.pull-right[

<table class="table" style="font-size: 14px; margin-left: auto; margin-right: auto;">
<caption style="font-size: initial !important;">Ecosystem-scale fishery management objectives</caption>
 <thead>
 <tr>
 <th style="text-align:left;font-weight: bold;"> Objective Categories </th>
 <th style="text-align:left;font-weight: bold;"> Indicators reported </th>
 </tr>
 </thead>
<tbody>
 <tr grouplength="6"><td colspan="2" style="border-bottom: 1px solid;">Provisioning and Cultural Services</td></tr>
<tr>
 <td style="text-align:left;padding-left: 2em;" indentlevel="1"> Seafood Production </td>
 <td style="text-align:left;"> Landings; commercial total and by feeding guild; recreational harvest </td>
 </tr>
 <tr>
 <td style="text-align:left;padding-left: 2em;" indentlevel="1"> Profits </td>

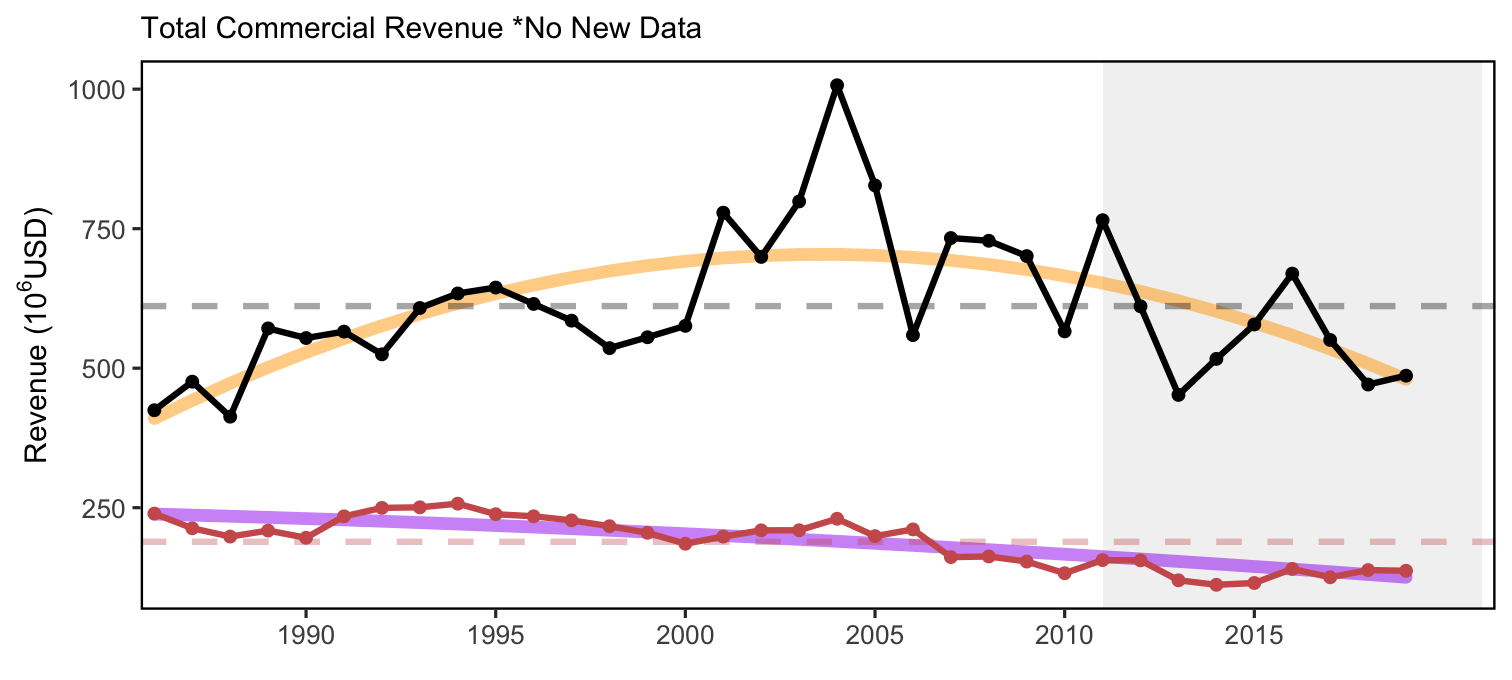

 <td style="text-align:left;"> Revenue decomposed to price and volume </td>
 </tr>
 <tr>
 <td style="text-align:left;padding-left: 2em;" indentlevel="1"> Recreation </td>

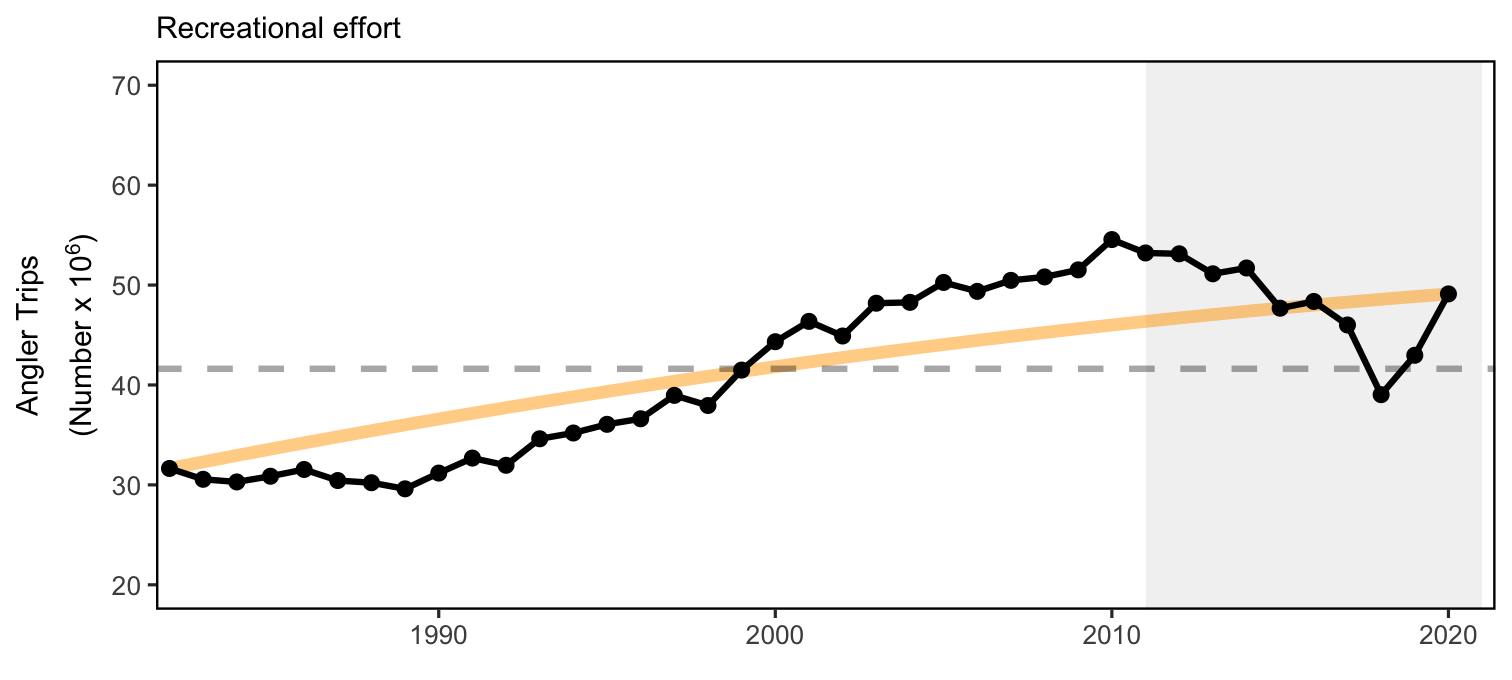

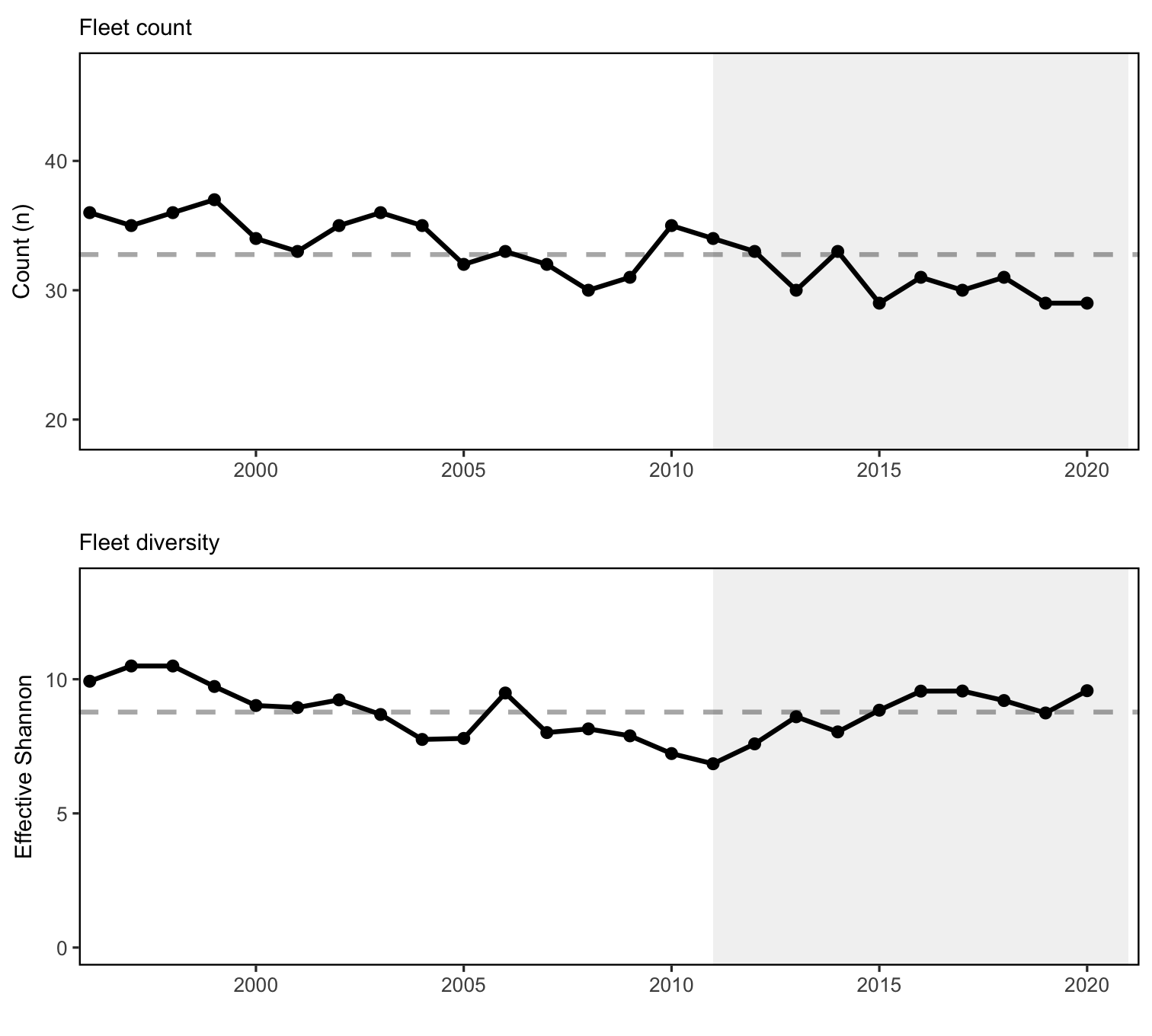

 <td style="text-align:left;"> Angler trips; recreational fleet diversity </td>
 </tr>
 <tr>
 <td style="text-align:left;padding-left: 2em;" indentlevel="1"> Stability </td>
 <td style="text-align:left;"> Diversity indices (fishery and ecosystem) </td>
 </tr>
 <tr>
 <td style="text-align:left;padding-left: 2em;" indentlevel="1"> Social &amp; Cultural </td>
 <td style="text-align:left;"> Community engagement/reliance and environmental justice status </td>
 </tr>
 <tr>
 <td style="text-align:left;padding-left: 2em;" indentlevel="1"> Protected Species </td>

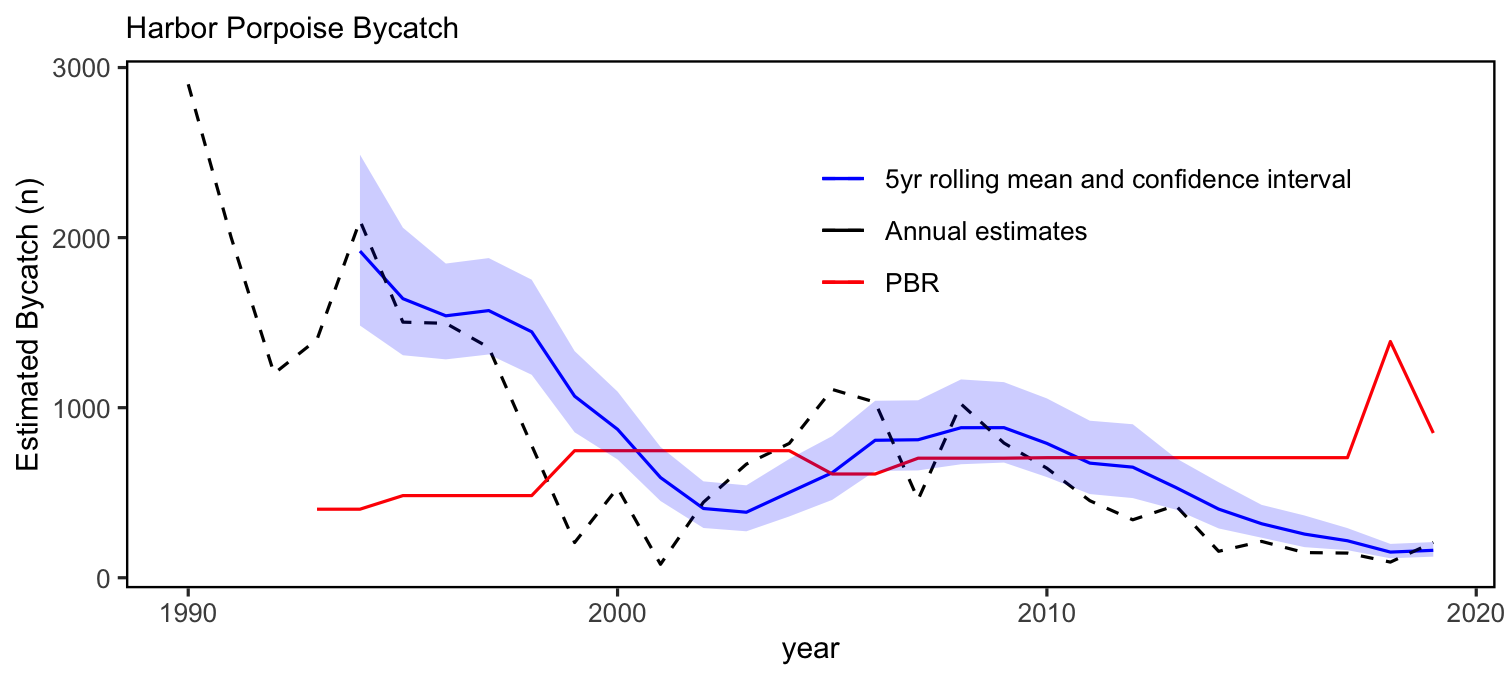

 <td style="text-align:left;"> Bycatch; population (adult and juvenile) numbers, mortalities </td>
 </tr>
 <tr grouplength="4"><td colspan="2" style="border-bottom: 1px solid;">Supporting and Regulating Services</td></tr>
<tr>
 <td style="text-align:left;padding-left: 2em;" indentlevel="1"> Biomass </td>
 <td style="text-align:left;"> Biomass or abundance by feeding guild from surveys </td>
 </tr>
 <tr>
 <td style="text-align:left;padding-left: 2em;" indentlevel="1"> Productivity </td>
 <td style="text-align:left;"> Condition and recruitment of managed species, primary productivity </td>
 </tr>
 <tr>
 <td style="text-align:left;padding-left: 2em;" indentlevel="1"> Trophic structure </td>
 <td style="text-align:left;"> Relative biomass of feeding guilds, zooplankton </td>
 </tr>
 <tr>
 <td style="text-align:left;padding-left: 2em;" indentlevel="1"> Habitat </td>
 <td style="text-align:left;"> Estuarine and offshore habitat conditions </td>
 </tr>
</tbody>
</table>
]

---
## State of the Ecosystem report structure: graphical summary
.pull-left[
.center[
![:img State of the Ecosystem page 1 summary table, 95%](EDAB_images/SOE-MA-final-03.23.22-no marks_Page_2.png)
]
]

.pull-right[
.center[
![:img State of the Ecosystem page 2 risk bullets, 95%](EDAB_images/SOE-MA-final-03.23.22-no marks_Page_3.png)
]
]

---
## Ecosystem synthesis themes

Characterizing ecosystem change for fishery management

* Societal, biological, physical and chemical factors comprise the **multiple system drivers** that influence marine ecosystems through a variety of different pathways.
* Changes in the multiple drivers can lead to **regime shifts** — large, abrupt and persistent changes in the structure and function of an ecosystem.
* Regime shifts and changes in how the multiple system drivers interact can result in **ecosystem reorganization** as species and humans respond and adapt to the new environment.

.pull-left[

![:img](EDAB_images/SystemDrivers_v5.jpg)
]

.pull-right[
![:img](EDAB_images/RegimeShift_V5.jpg)
]

---
## State of the Ecosystem report scale and figures

.pull-left[
Spatial scale
![:img NEFSC survey strata used to calculate Ecosystem Production Unit biomass, 80%](EDAB_images/EPU_Designations_Map.jpg)

A [glossary of terms](https://noaa-edab.github.io/tech-doc/glossary.html) (2021 Memo 5), detailed [technical methods documentation](https://NOAA-EDAB.github.io/tech-doc) and [indicator data](https://github.com/NOAA-EDAB/ecodata) are available online.
]

.pull-right[

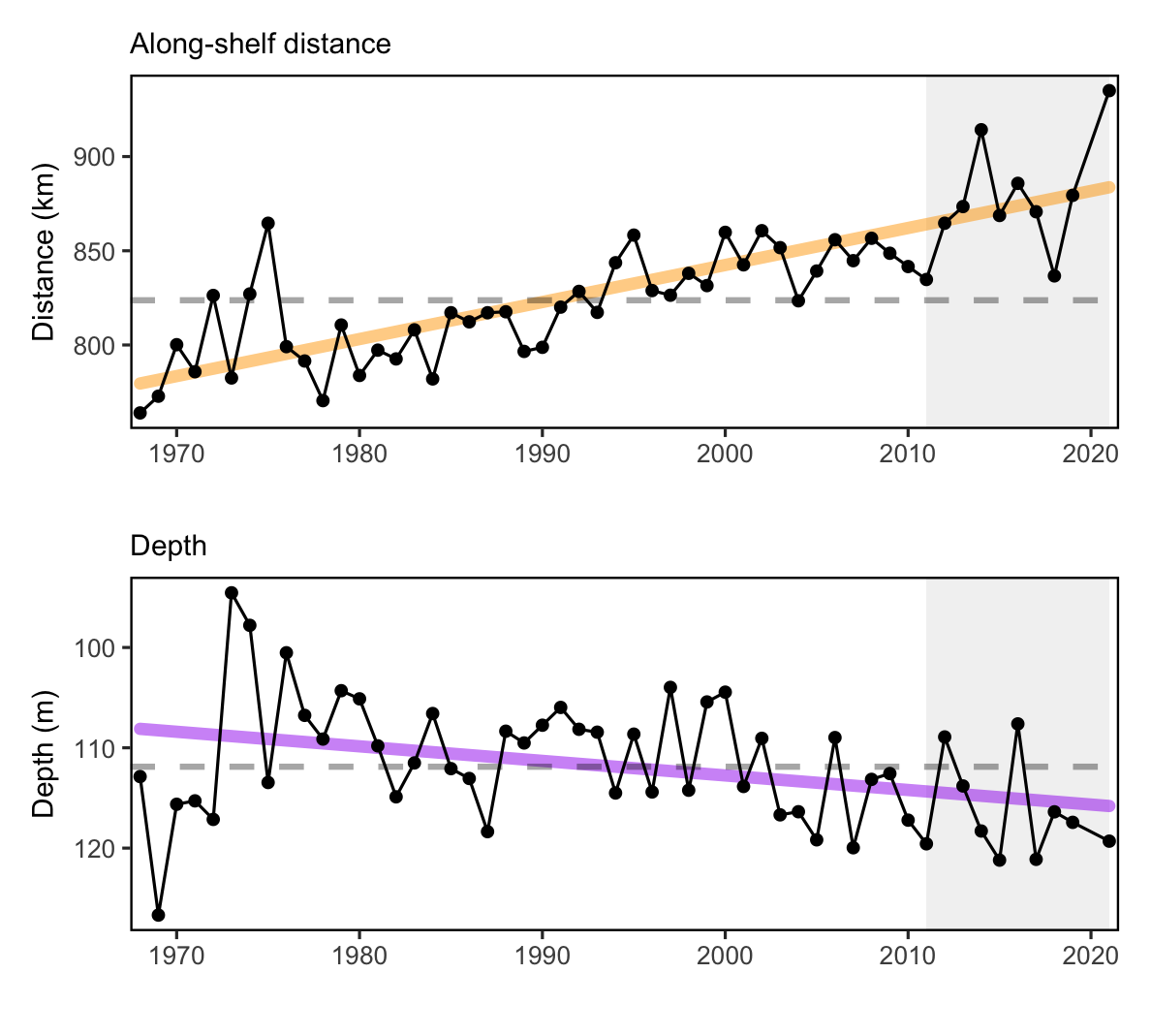

Key to figures
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-5-1.png" width="396" style="display: block; margin: auto;" />

.contrib[
Trends assessed only for 30+ years: [more information](https://noaa-edab.github.io/tech-doc/trend-analysis.html)

Orange line = significant increase
Purple line = significant decrease
No color line = not significant or < 30 years
Grey background = last 10 years
]
]

---
## 2022 State of the Ecosystem Request tracking memo

.scroll-output[

<table class="table" style="font-size: 12px; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;font-weight: bold;"> Request </th>
 <th style="text-align:right;font-weight: bold;"> Year </th>
 <th style="text-align:left;font-weight: bold;"> Source </th>
 <th style="text-align:left;font-weight: bold;"> Status </th>
 <th style="text-align:left;font-weight: bold;"> Progress </th>
 <th style="text-align:left;font-weight: bold;"> Memo Section </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Add "This report is for [audience]" </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> In SOE </td>
 <td style="text-align:left;width: 13.5cm; "> Introduction section </td>
 <td style="text-align:left;width: 1.5cm; "> 1 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> State management objectives first in report </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In SOE </td>
 <td style="text-align:left;width: 13.5cm; "> Introduction section + Table </td>
 <td style="text-align:left;width: 1.5cm; "> 2 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Ocean acidification (OA) in NEFMC SOE </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> In SOE </td>
 <td style="text-align:left;width: 13.5cm; "> Climate risks section </td>
 <td style="text-align:left;width: 1.5cm; "> 3 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Habitat impact of fishing based on gear. </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In SOE </td>
 <td style="text-align:left;width: 13.5cm; "> Habitat risks section </td>
 <td style="text-align:left;width: 1.5cm; "> 4 </td>
 </tr>
 <tr>

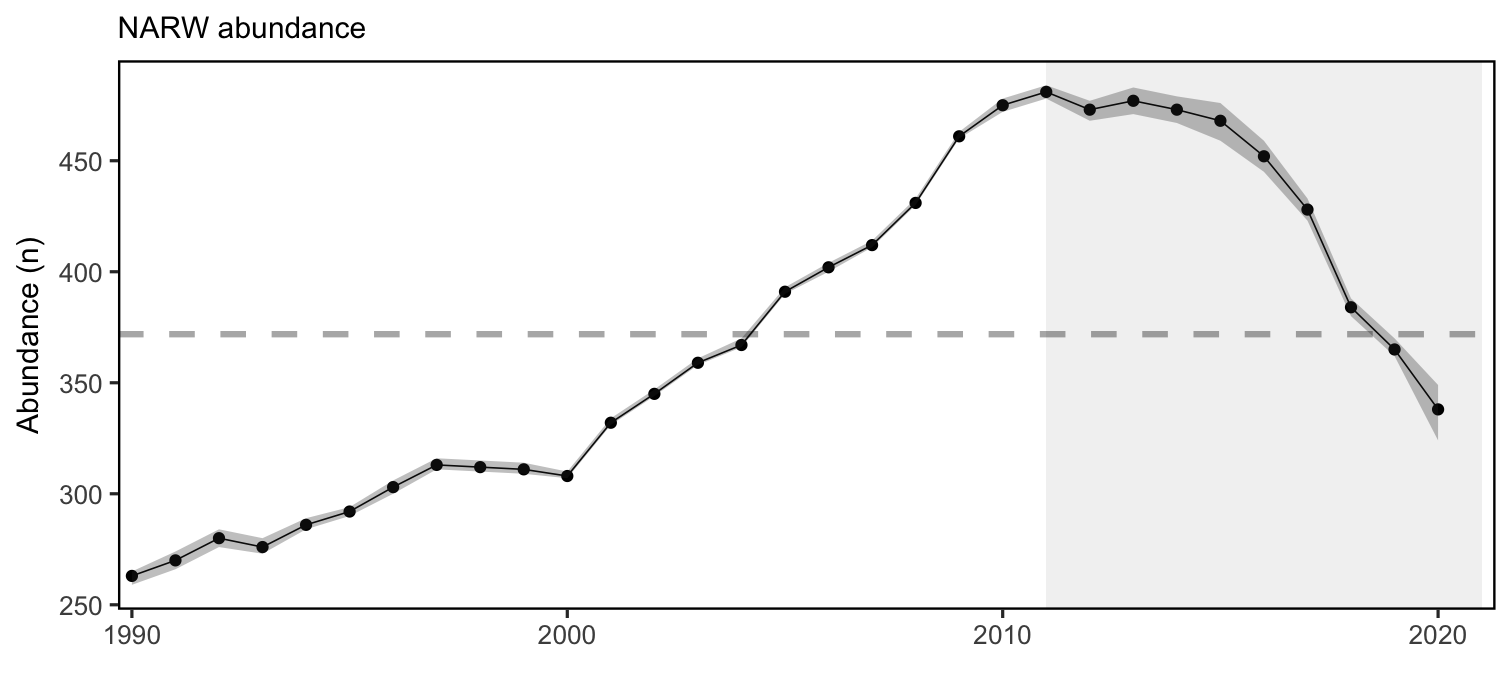

 <td style="text-align:left;width: 10.5cm; "> Revisit right whale language </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In SOE </td>
 <td style="text-align:left;width: 13.5cm; "> Protected species section </td>
 <td style="text-align:left;width: 1.5cm; "> 5 </td>
 </tr>
 <tr>

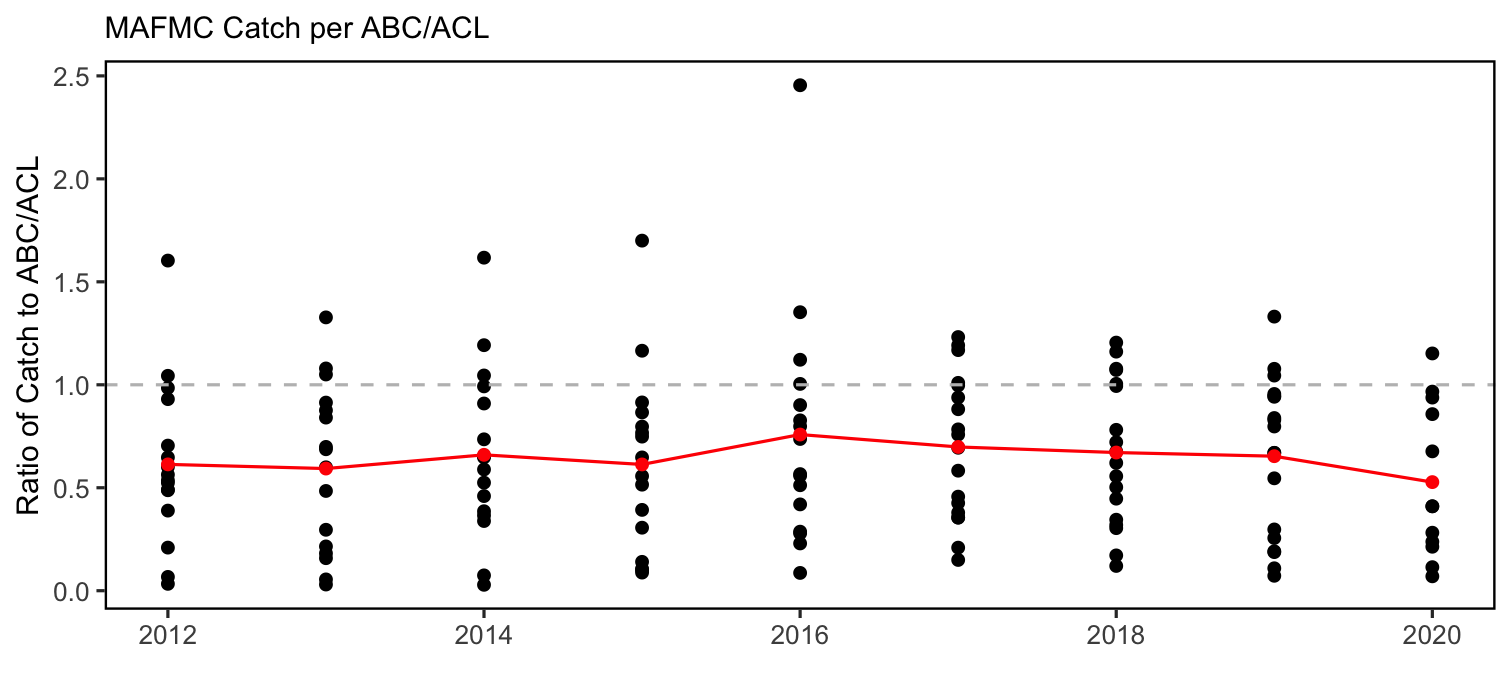

 <td style="text-align:left;width: 10.5cm; "> Sum of TAC/ Landings relative to TAC </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> In SOE-MAFMC </td>
 <td style="text-align:left;width: 13.5cm; "> Seafood production section </td>
 <td style="text-align:left;width: 1.5cm; "> 6 </td>
 </tr>
 <tr>

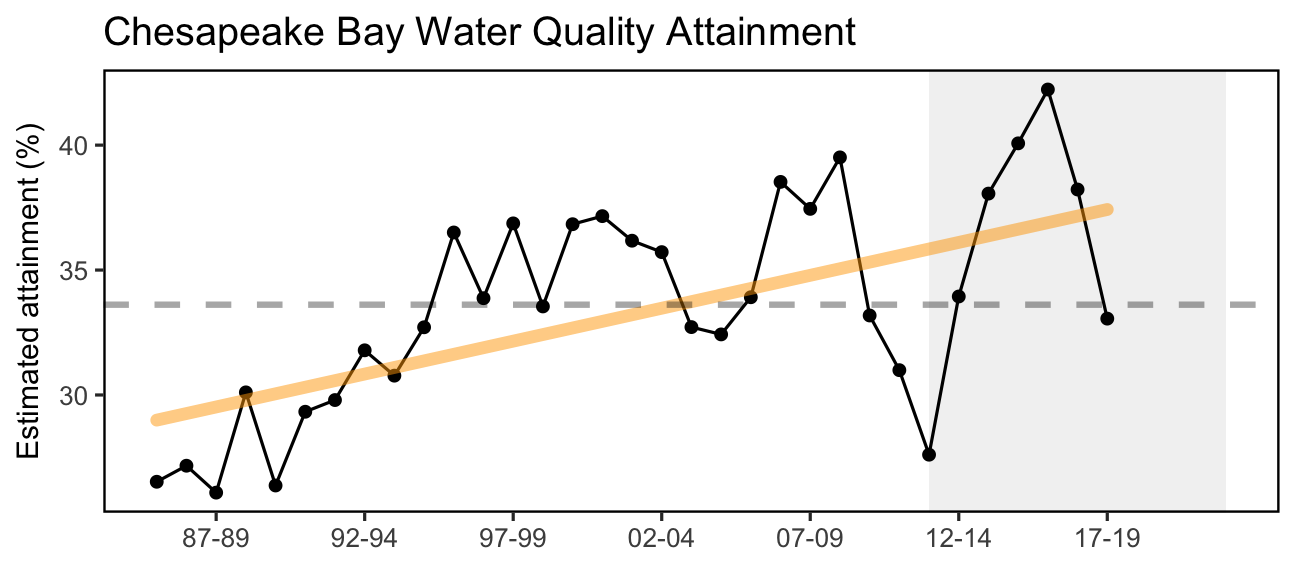

 <td style="text-align:left;width: 10.5cm; "> Estuarine Water Quality </td>
 <td style="text-align:right;width: 1cm; "> 2020 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In SOE-MAFMC, In progress-NEFMC </td>
 <td style="text-align:left;width: 13.5cm; "> Climate and Habitat Risks sections MAFMC; Intern collated New England NERRS data </td>
 <td style="text-align:left;width: 1.5cm; "> 7 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> More direct opportunities for feedback </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> MAFMC SSC ecosystem subgroup </td>
 <td style="text-align:left;width: 1.5cm; "> 8 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Further definition of regime shift </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Regime shift analyses for specific indicators define "abrupt" and "persistent" quantitatively </td>
 <td style="text-align:left;width: 1.5cm; "> 9 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Expand collaboration with Canadian counterparts </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Currently drafting a NMFS-DFO climate/fisheries collaboration framework. </td>
 <td style="text-align:left;width: 1.5cm; "> 10 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Fall turnover date index </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> See Current Conditions report </td>
 <td style="text-align:left;width: 1.5cm; "> 11 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Links between species availability inshore/offshore (estuarine conditions) and trends in recreational fishing effort? </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Bluefish prey index inshore/offshore partially addresses </td>
 <td style="text-align:left;width: 1.5cm; "> 12 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Apex predator index (pinnipeds) </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Protected species branch developing time series </td>
 <td style="text-align:left;width: 1.5cm; "> 13 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Forage availability index (Herring/Sandlance) </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Bluefish prey index partially addresses </td>
 <td style="text-align:left;width: 1.5cm; "> 14 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Fishery gear modifications accounted for in shark CPUE? </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Updated methods in tech-doc </td>
 <td style="text-align:left;width: 1.5cm; "> 15 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Trend analysis </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Evaluating empirical thresholds </td>
 <td style="text-align:left;width: 1.5cm; "> 16 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Regime shifts in Social-Economic indicators </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> National working group and regional study </td>
 <td style="text-align:left;width: 1.5cm; "> 17 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Linking Condition </td>
 <td style="text-align:right;width: 1cm; "> 2020 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Not ready for 2022 </td>
 <td style="text-align:left;width: 1.5cm; "> 18 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Cumulative weather index </td>
 <td style="text-align:right;width: 1cm; "> 2020 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Data gathered for prototype </td>
 <td style="text-align:left;width: 1.5cm; "> 19 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> VAST and uncertainty </td>
 <td style="text-align:right;width: 1cm; "> 2020 </td>
 <td style="text-align:left;width: 2cm; "> Both Councils </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Not ready for 2022 </td>
 <td style="text-align:left;width: 1.5cm; "> 20 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Seal index </td>
 <td style="text-align:right;width: 1cm; "> 2020 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Not ready for 2022 </td>
 <td style="text-align:left;width: 1.5cm; "> 21 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Breakpoints </td>
 <td style="text-align:right;width: 1cm; "> 2020 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Evaluating empirical thresholds </td>
 <td style="text-align:left;width: 1.5cm; "> 22 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Management complexity </td>
 <td style="text-align:right;width: 1cm; "> 2019 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Student work needs further analysis, no further work this year </td>
 <td style="text-align:left;width: 1.5cm; "> 23 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Shellfish growth/distribution linked to climate (system productivity) </td>
 <td style="text-align:right;width: 1cm; "> 2019 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Project with A. Hollander </td>
 <td style="text-align:left;width: 1.5cm; "> 24 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Avg weight of diet components by feeding group </td>
 <td style="text-align:right;width: 1cm; "> 2019 </td>
 <td style="text-align:left;width: 2cm; "> Internal </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Part of fish condition project </td>
 <td style="text-align:left;width: 1.5cm; "> 25 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Mean stomach weight across feeding guilds </td>
 <td style="text-align:right;width: 1cm; "> 2019 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Intern evaluated trends in guild diets </td>
 <td style="text-align:left;width: 1.5cm; "> 26 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Inflection points for indicators </td>
 <td style="text-align:right;width: 1cm; "> 2019 </td>
 <td style="text-align:left;width: 2cm; "> Both Councils </td>
 <td style="text-align:left;width: 4.5cm; "> In progress </td>
 <td style="text-align:left;width: 13.5cm; "> Evaluating empirical thresholds </td>
 <td style="text-align:left;width: 1.5cm; "> 27 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Recreational bycatch mortality as an indicator of regulatory waste </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 28 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Sturgeon Bycatch </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 29 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Decomposition of diversity drivers highlighting social components </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 30 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Changing per capita seafood consumption as driver of revenue? </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 31 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Nutrient input, Benthic Flux and POC(particulate organic carbon ) to inform benthic productivity by something other than surface indidcators </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 32 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Relate OA to nutrient input; are there "dead zones" (hypoxia)? </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 33 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Indicators of chemical pollution in offshore waters </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 34 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> How does phyto size comp affect EOF indicator, if at all? </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> May pursue with MAFMC SSC eco WG </td>
 <td style="text-align:left;width: 1.5cm; "> 35 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Indicator of scallop pred pops poorly sampled by bottom trawls </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 36 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Compare EOF (Link) thresholds to empirical thresholds (Large, Tam) </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> May pursue with MAFMC SSC eco WG </td>
 <td style="text-align:left;width: 1.5cm; "> 37 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Time series analysis (Zooplankton/Forage fish) to tie into regime shifts </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC SSC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 38 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Optimum yield for ecosystem </td>
 <td style="text-align:right;width: 1cm; "> 2021 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> May pursue with MAFMC SSC eco WG </td>
 <td style="text-align:left;width: 1.5cm; "> 39 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Re-evaluate EPUs </td>
 <td style="text-align:right;width: 1cm; "> 2020 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 40 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Incorporate social sciences survey from council </td>
 <td style="text-align:right;width: 1cm; "> 2020 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 41 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Biomass of spp not included in BTS </td>
 <td style="text-align:right;width: 1cm; "> 2020 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 42 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Reduce indicator dimensionality with multivariate statistics </td>
 <td style="text-align:right;width: 1cm; "> 2020 </td>
 <td style="text-align:left;width: 2cm; "> NEFMC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 43 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Estuarine condition relative to power plants and temp </td>
 <td style="text-align:right;width: 1cm; "> 2019 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 44 </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 10.5cm; "> Young of Year index from multiple surveys </td>
 <td style="text-align:right;width: 1cm; "> 2019 </td>
 <td style="text-align:left;width: 2cm; "> MAFMC </td>
 <td style="text-align:left;width: 4.5cm; "> Not started </td>
 <td style="text-align:left;width: 13.5cm; "> Lacking resources this year </td>
 <td style="text-align:left;width: 1.5cm; "> 45 </td>
 </tr>
</tbody>
</table>

]

---
## Report structure revised in 2021 to address Council requests and improve synthesis

.pull-left[
* Performance relative to management objectives
    - *What* does the indicator say--up, down, stable?
    - *Why* do we think it is changing: integrates synthesis themes
        - Multiple drivers
        - Regime shifts
        - Ecosystem reorganization
* Objectives
    - Seafood production
    - Profits
    - Recreational opportunities
    - Stability
    - Social and cultural
    - Protected species
]

.pull-right[
* Risks to meeting fishery management objectives
    - *What* does the indicator say--up, down, stable?
    - *Why* this is important to managers: integrates synthesis themes
        - Multiple drivers
        - Regime shifts
        - Ecosystem reorganization
* Risk categories
    - Climate: warming, ocean currents, acidification
        - Habitat changes (incl. vulnerability analysis)
        - Productivity changes (system and fish)
        - Species interaction changes
        - Community structure changes
    - Other ocean uses
        - Offshore wind development
]

---
background-image: url("EDAB_images/SOE-MA-final-03.23.22-no marks_Page_2.png")
background-size: 500px
background-position: right

## State of the Ecosystem Summary 2022:
**Performance relative to management objectives**

.pull-left-60[
Seafood production ![:img decreasing arrow icon, 4%](EDAB_images/decrease.png), status not evaluated

Profits ![:img decreasing arrow icon, 4%](EDAB_images/decrease.png), status not evaluated

Recreational opportunities:  Effort ![:img increasing arrow icon, 4%](EDAB_images/increase.png) ![:img above average icon icon, 4%](EDAB_images/above long term ave.png); Effort diversity ![:img decreasing arrow icon, 4%](EDAB_images/decrease.png) ![:img below average icon icon, 4%](EDAB_images/below long term ave.png)

Stability: Fishery ![:img no trend icon, 4%](EDAB_images/no trend.png) ![:img near average icon icon, 2%](EDAB_images/near long term average.png); Ecological ![:img mixed trend icon, 4%](EDAB_images/Mixed trends.png) ![:img near average icon icon, 2%](EDAB_images/near long term average.png)

Social and cultural, trend not evaluated, status of:
*  Fishing engagement and reliance by community
*  Environmental Justice (EJ) Vulnerability by community

Protected species:
*  Maintain bycatch below thresholds ![:img mixed trend icon, 4%](EDAB_images/Mixed trends.png) ![:img meeting objectives icon, 4%](EDAB_images/checked.png)
*  Recover endangered populations (NARW) ![:img decreasing arrow icon, 4%](EDAB_images/decrease.png) ![:img below average icon icon, 4%](EDAB_images/below long term ave.png)
]
.pull-right-40[]

---
background-image: url("EDAB_images/SOE-MA-final-03.23.22-no marks_Page_3.png")
background-size: 500px
background-position: right

## State of the Ecosystem Summary 2022:
**Risks to meeting fishery management objectives**

.pull-left-60[
Climate: warming and changing oceanography continue
*  Heat waves and Gulf Stream instability
*  Estuarine, coastal, and offshore habitats affected, with range of species responses
*  Below average summer 2021 phytoplankton

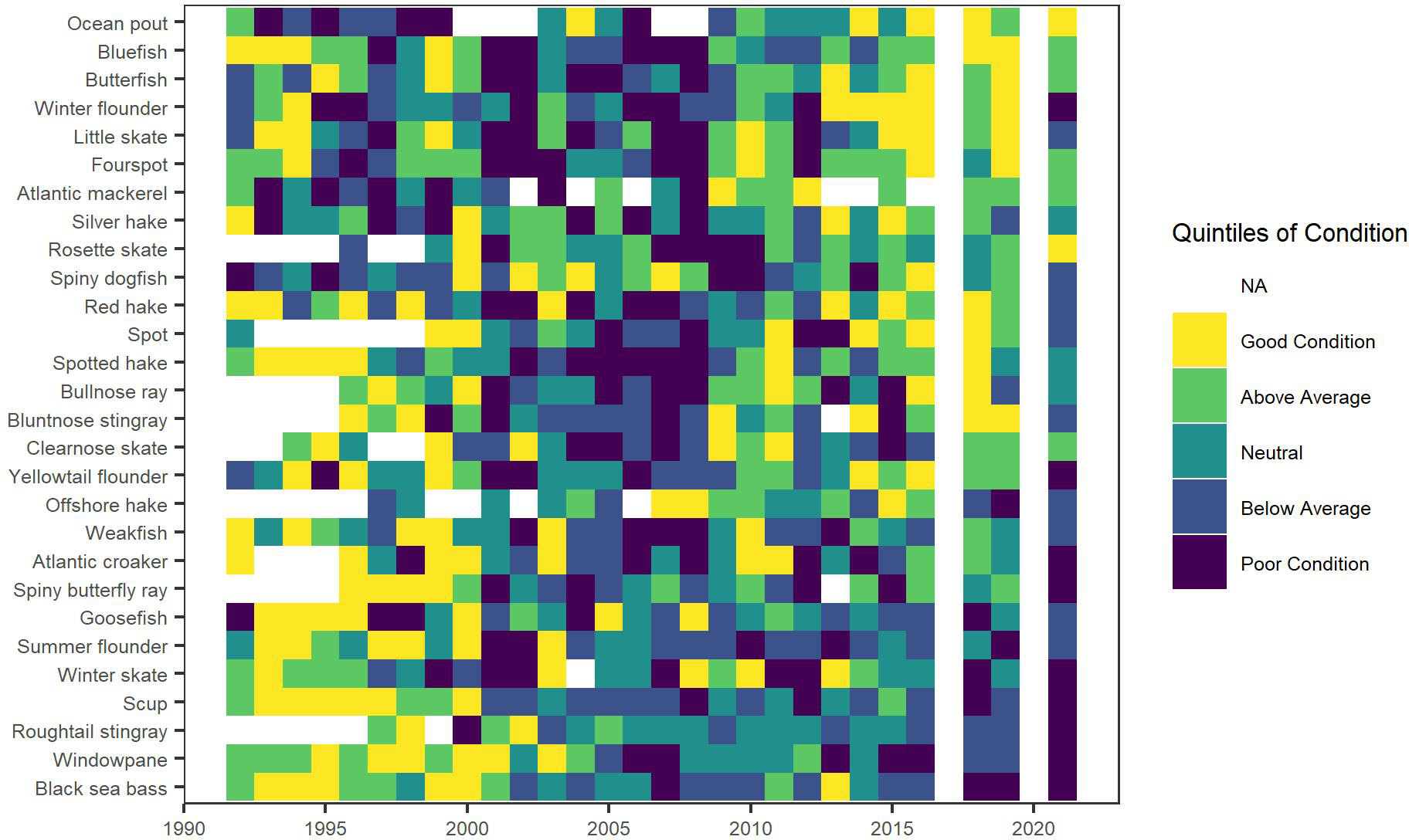

*  Multiple fish with poor condition, declining productivity

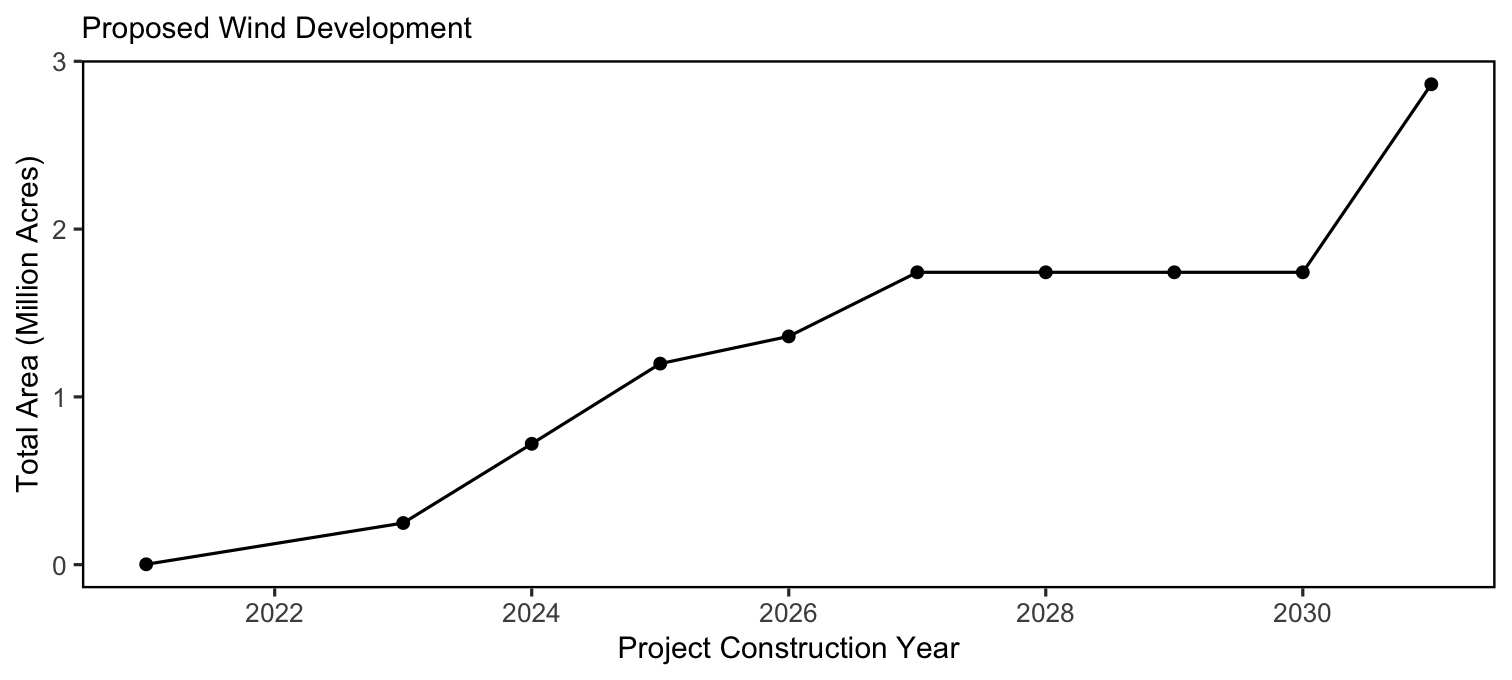

Other ocean uses: offshore wind development

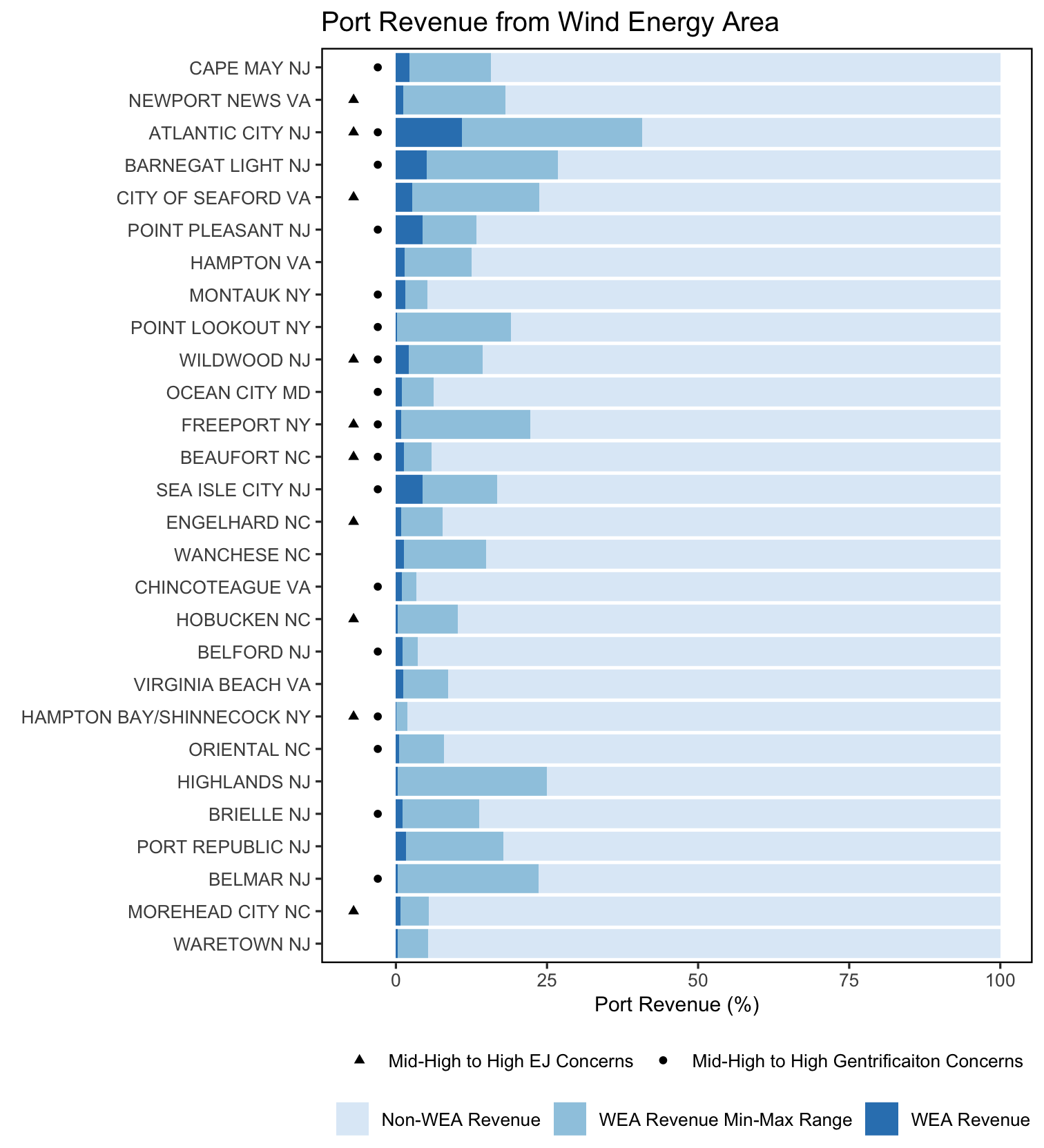

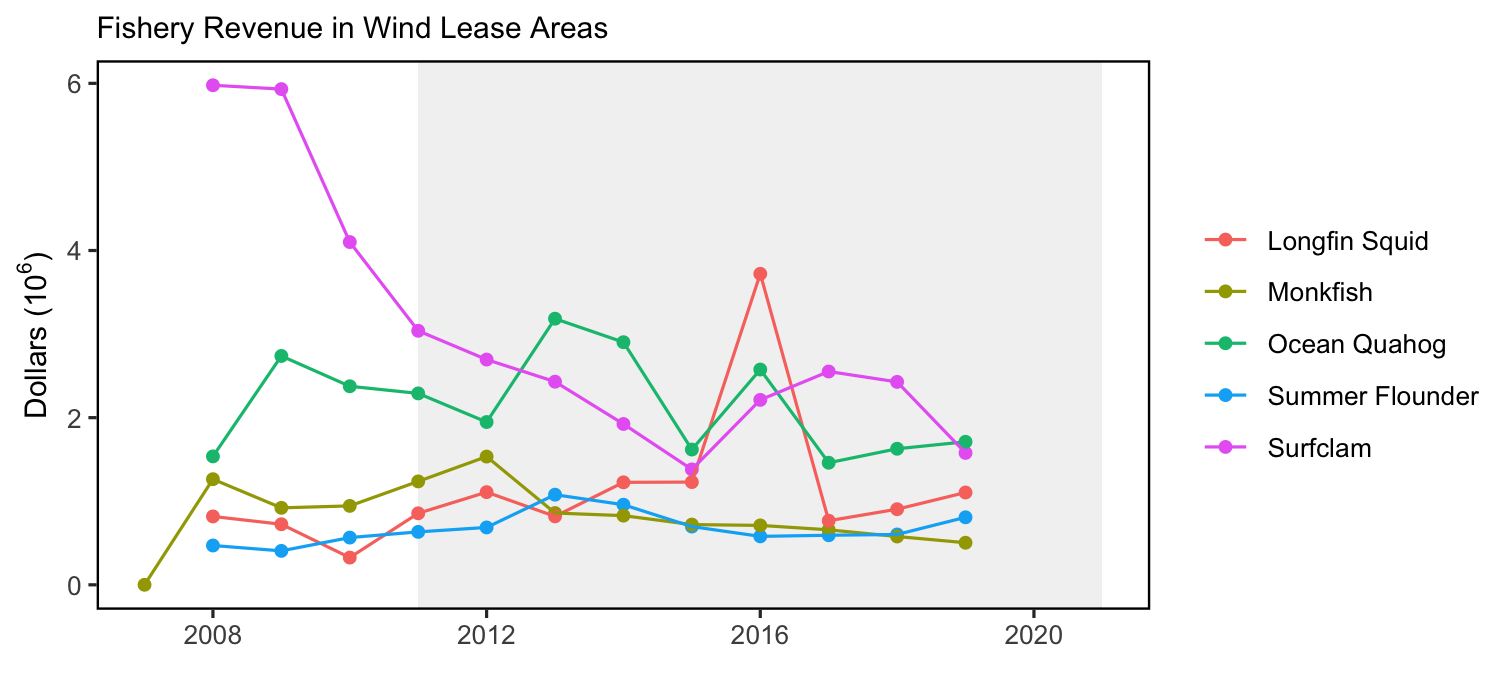

*  Current revenue in proposed areas
    - 1-31% by port (some with EJ concerns)
    - 0-20% by managed species
*  Different development impacts for species preferring soft bottom vs. hard bottom
*  Overlap with one of the only known right whale foraging habitats, increased vessel strike and noise risks
*  Rapid buildout in patchwork of areas
*  Scientific survey mitigation required
]
.pull-right-40[]

---
## State of the Ecosystem &rarr; MAFMC Risk assessent example: Commercial revenue

This element is applied at the ecosystem level. Revenue serves as a proxy for commercial profits.

.table[
.pull-left[

<table>
 <thead>
 <tr>
 <th style="text-align:left;"> Risk Level </th>
 <th style="text-align:left;"> Definition </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;width: 20em; "> Low </td>
 <td style="text-align:left;width: 20em; "> No trend and low variability in revenue </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 20em; "> Low-Moderate </td>
 <td style="text-align:left;width: 20em; "> Increasing or high variability in revenue </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 20em; font-weight: bold;background-color: orange !important;"> Moderate-High </td>
 <td style="text-align:left;width: 20em; font-weight: bold;background-color: orange !important;"> Significant long term revenue decrease </td>
 </tr>
 <tr>
 <td style="text-align:left;width: 20em; "> High </td>
 <td style="text-align:left;width: 20em; "> Significant recent decrease in revenue </td>
 </tr>
</tbody>
</table>

Ranked moderate-high risk due to the significant long term revenue decrease for Mid-Atlantic managed species (red points in top plot)

]
]
.pull-right[
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-7-1.png" width="504" style="display: block; margin: auto;" />

Key: Black = Revenue of all species combined; Red = Revenue of MAFMC managed species

]

## Risk element: CommRev, unchanged

---
# Performance relative to management objectives

.center[
![:img Fishing icon made by EDAB, 15%](EDAB_images/5_FISHING.png) &nbsp; &nbsp; &nbsp; ![:img Fishing industry icon made by EDAB, 15%](EDAB_images/6_INDUSTRY.png) &nbsp; &nbsp; &nbsp; ![:img Multiple drivers icon made by EDAB, 25%](EDAB_images/18.MULTIPLE_SYSTEM_DRIVERS.png) &nbsp; &nbsp; &nbsp; ![:img Spiritual cultural icon made by EDAB, 15%](EDAB_images/22.SPIRITUAL_CULTURAL.png) &nbsp; &nbsp; &nbsp; ![:img Protected species icon made by EDAB, 15%](EDAB_images/16.PROTECTEDSPECIES.png)
]

---
## Objective: Seafood production ![:img decreasing arrow icon, 2%](EDAB_images/decrease.png) &emsp; Risk elements: ComFood and RecFood, unchanged

.pull-left[

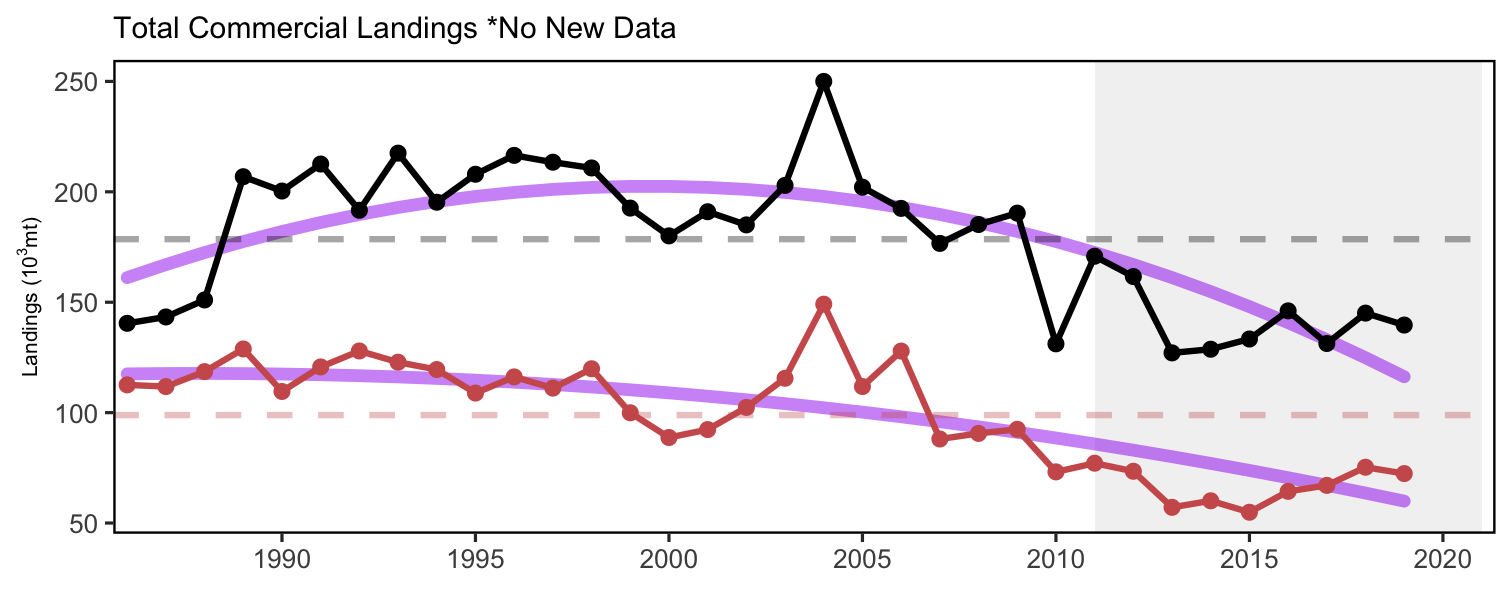

Indicator: Commercial landings

.reduced_opacity[
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-8-1.png" width="504" style="display: block; margin: auto;" />
.contrib[
Key: Black = Landings of all species combined; Red = Landings of MAFMC managed species
]
]

Coastwide landings at the Federal fishery management plan (FMP) level were mixed in 2020 when compared to recent years. Landings of monkfish and of combined surfclam and ocean quahog declined in 2020, while landings of combined summer flounder, scup, and black sea bass increased, and landings of combined squid species increased in 2020.*

]

.pull-right[

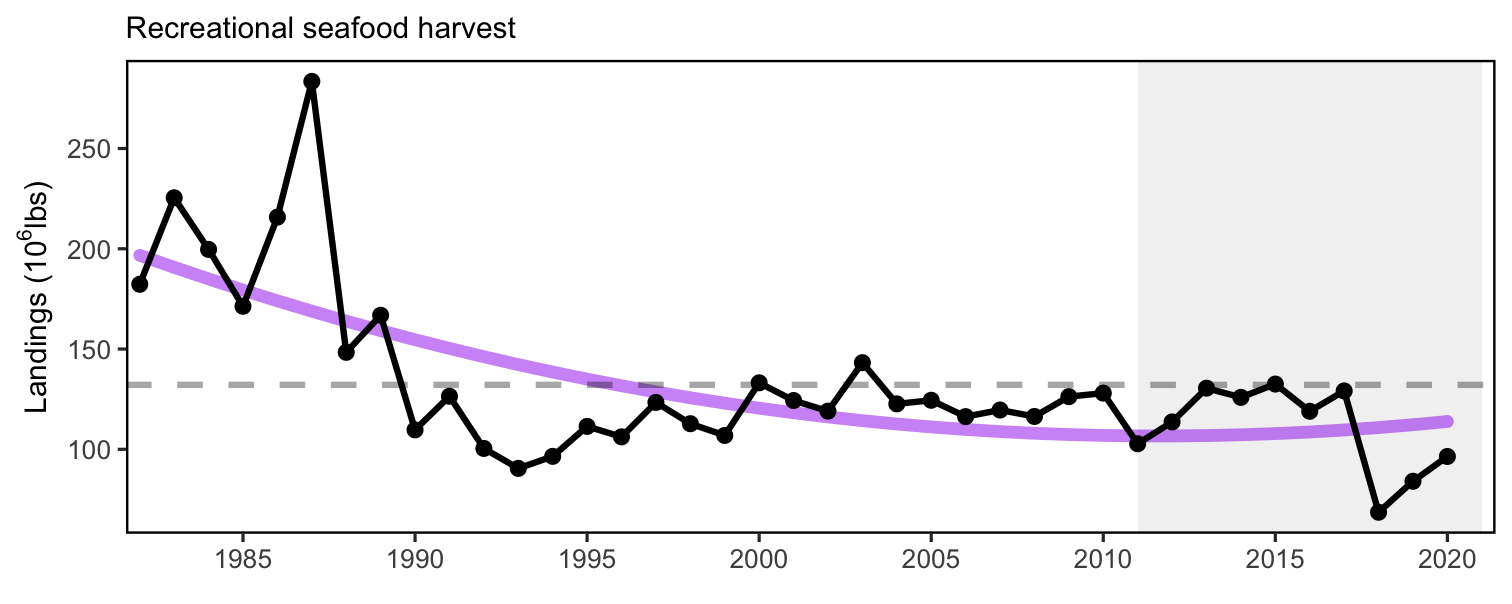

Indicators: Recreational harvest
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-9-1.png" width="504" style="display: block; margin: auto;" />

*[US Seafood Industry and For-Hire
Sector Impacts from COVID-19: 2020 in Perspective](https://spo.nmfs.noaa.gov/sites/default/files/TM221.pdf)

]

Multiple potential drivers of landings changes: ecosystem and stock production, management actions, market conditions (including COVID-19 disruptions), and environmental change.

???
However, we do not anticipate the long-term declining trend in landings to change.
---
## Landings drivers: Stock status? TAC? &emsp; Risk elements: Fstatus, Bstatus  unchanged

.pull-left[

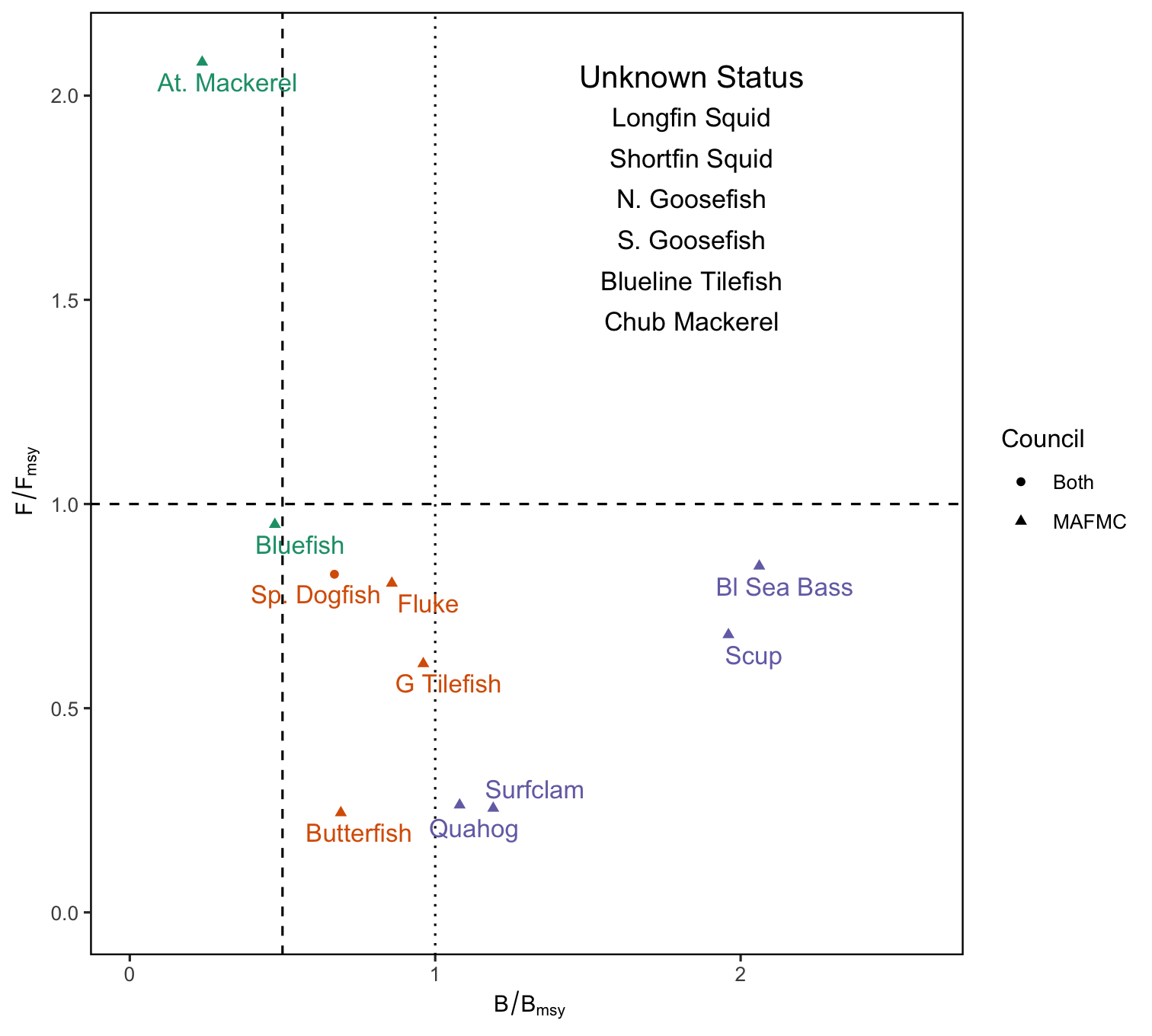

Indicator: Stock status

]

.pull-right[

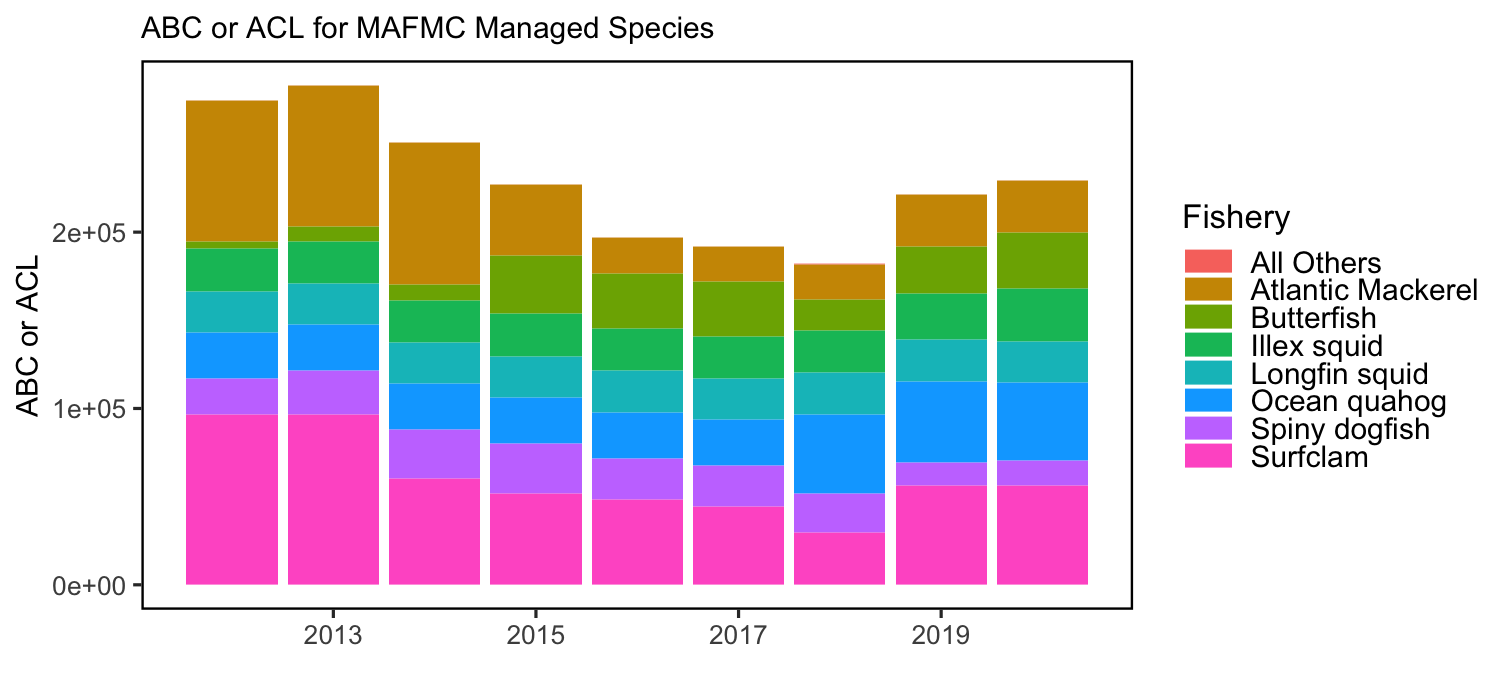

New Indicators: Total ABC or ACL, and Realized catch relative to management target

]
???
Stock status affects catch limits established by the Council, which in turn may affect landings trends. Summed across all MAFMC managed species, total Acceptable Biological Catch or Annual Catch Limits (ABC or ACL) have been relatively stable 2012-2020 (top). With the addition of blueline tilefish management in 2017, an additional ABC and ACL contribute to the total 2017-2020. Discounting blueline tilefish, the recent total ABC or ACL is lower relative to 2012-2013, with much of that decrease due to declining Atlantic mackerel ABC.

Nevertheless, the percentage caught for each stock’s ABC/ACL suggests that these catch limits are not generally constraining as most species are well below the 1/1 ratio (bottom). Therefore, stock status and associated management constraints are unlikely to be driving decreased landings for the majority of species.

---
## Implications: Seafood Production
.pull-left[

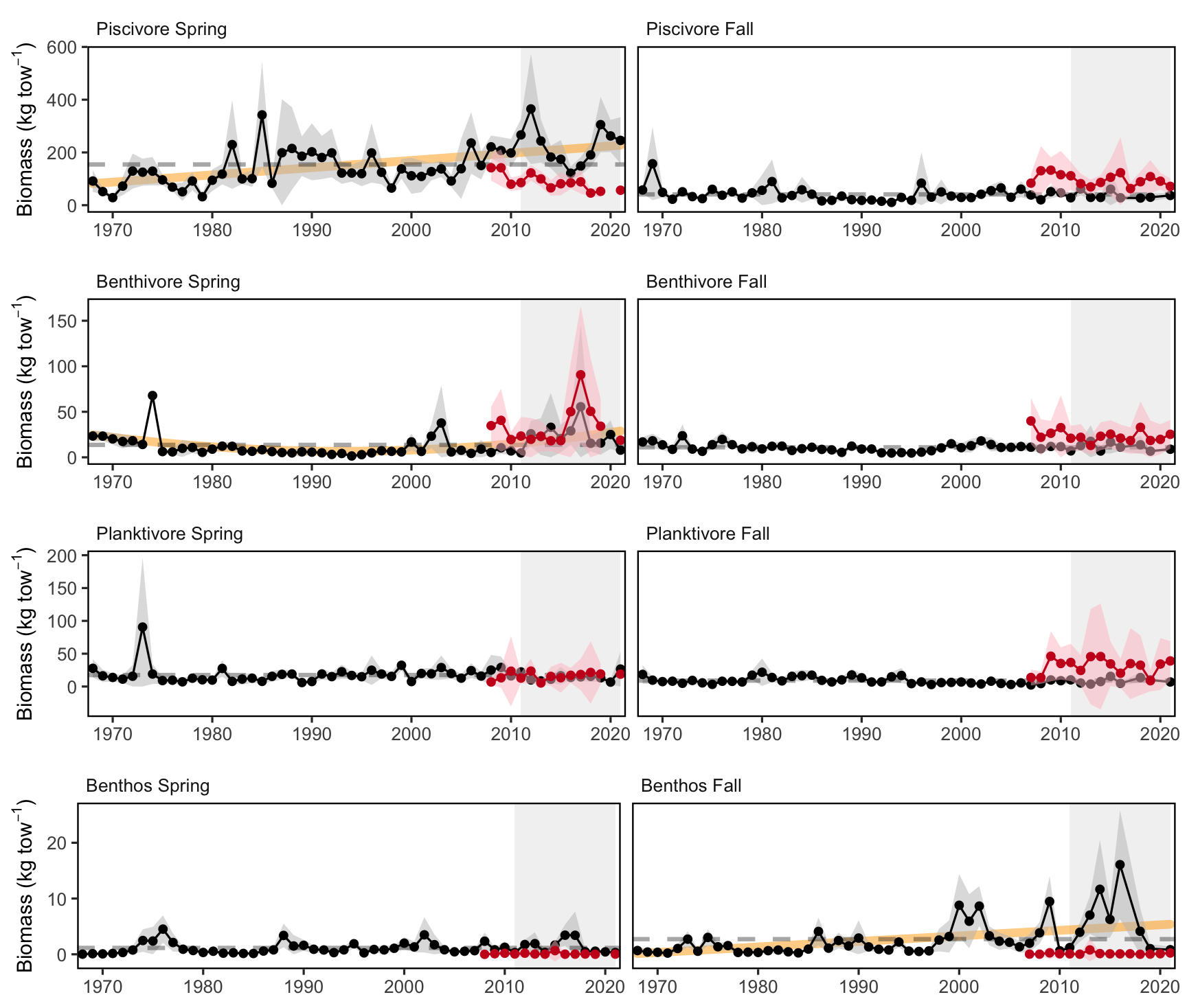

Biomass does not appear to drive landings trends
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-14-1.png" width="576" style="display: block; margin: auto;" />

.contrib[
Key: Black = NEFSC survey; Red = NEAMAP survey
]

]

.pull-right[
Drivers:

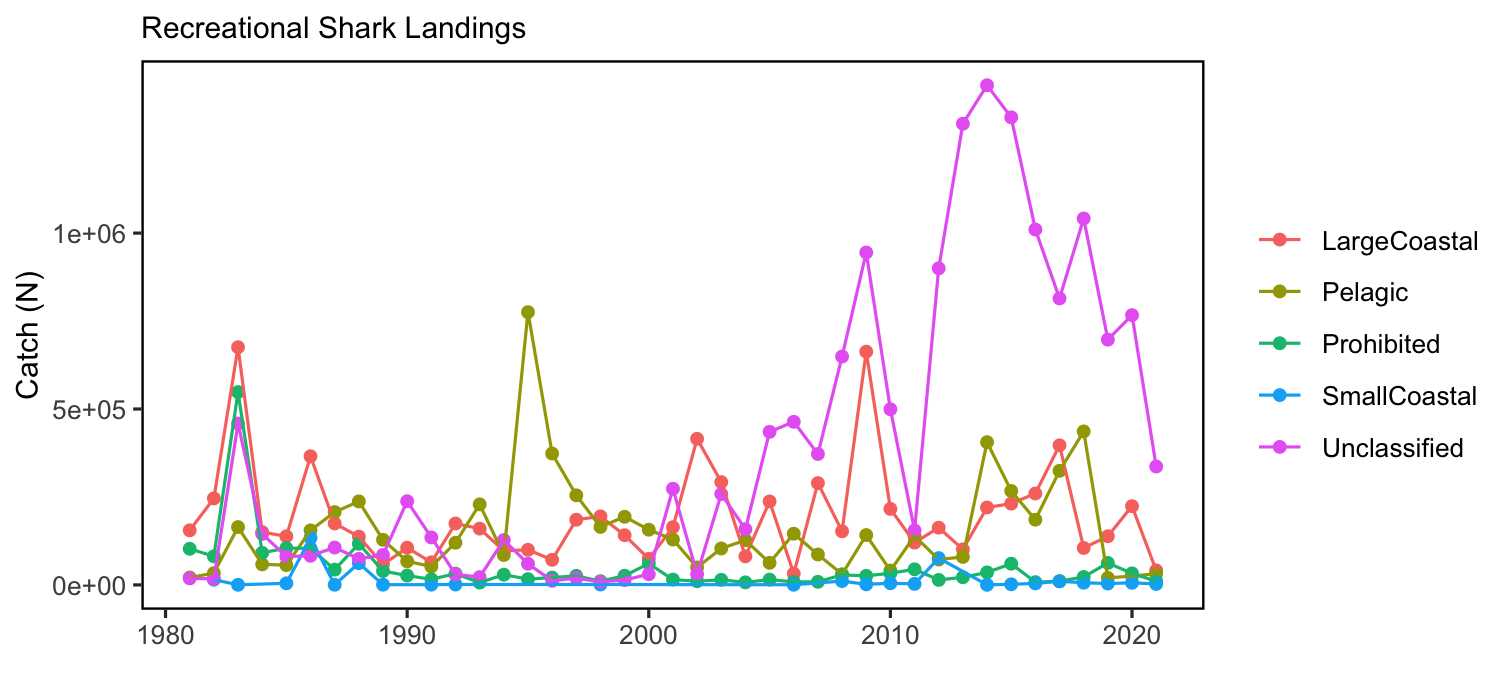

* Recreational landings differ: shark fishery management, possibly survey methodology

Monitor:
* climate risks including warming, ocean acidification, and shifting distributions
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-15-1.png" width="252" style="display: block; margin: auto;" />
* ecosystem composition and production changes
* fishing engagement

]

???
Because stock status is mostly acceptable, ABCs don't appear to be constraining for many stocks, and aggregate biomass trends appear stable, the decline in commercial landings is most likely driven by market dynamics affecting the landings of surfclams and ocean quahogs, as quotas are not binding for these species.

Climate change also seems to be shifting the distribution of surfclams and ocean quahogs, resulting in areas with overlapping distributions and increased mixed landings. Given the regulations governing mixed landings, this could become problematic in the future and is currently being evaluated by the Council.

---
## Objective: Commercial Profits ![:img decreasing arrow icon, 2%](EDAB_images/decrease.png) &emsp; Risk element: CommRev, unchanged

.pull-left[
Indicator: Commercial Revenue
.reduced_opacity[
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-16-1.png" width="504" style="display: block; margin: auto;" />
.contrib[
Key: Black = Revenue of all species combined; Red = Revenue of MAFMC managed species
]
Recent change driven by benthos
]

]
.pull-right[
Monitor changes in climate and landings drivers:

- Climate risk element: Surfclams and ocean quahogs are sensitive to ocean warming and acidification.

- pH in surfclam summer habitat is approaching, but not yet at, pH affecting surfclam growth
]

???
Recent declines in prices contributed to falling revenue as quantities landed did not increase enough to counteract declining prices.

---
## Objective: Recreational opportunities ![:img increasing arrow icon, 2%](EDAB_images/increase.png) ![:img above average icon icon, 2%](EDAB_images/above long term ave.png); ![:img decreasing arrow icon, 2%](EDAB_images/decrease.png) ![:img below average icon icon, 2%](EDAB_images/below long term ave.png) Risk element: RecValue, decreased risk; add diversity?

.pull-left[
Indicators: Recreational effort and fleet diversity
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-17-1.png" width="504" style="display: block; margin: auto;" />

<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-18-1.png" width="504" style="display: block; margin: auto;" />
]

.pull-right[
Implications

* Increased angler trips in 2020 relative to previous years strongly influence the long term increase in recreational effort. Recreational effort (angler trips) has increased over the long term, with 2020 effort above the long-term average.

* The increasing long term trend changes the risk categories for the RecValue element to low-moderate (previously ranked high risk).

* Decline in recreational fleet diversity suggests a potentially reduced range of opportunities.

* Driven by party/charter contraction (from a high of 24% of angler trips to 7% currently), and a shift toward shore based angling.

]

???
Changes in recreational fleet diversity can be considered when managers seek options to maintain recreational opportunities. Shore anglers will have access to different species than vessel-based anglers, and when the same species, typically smaller fish. Many states have developed shore-based regulations where the minimum size is lower than in other areas and sectors to maintain opportunities in the shore angling sector.

---
## Objective: Environmental Justice and Social Vulnerability &emsp; Risk element: Social, unchanged

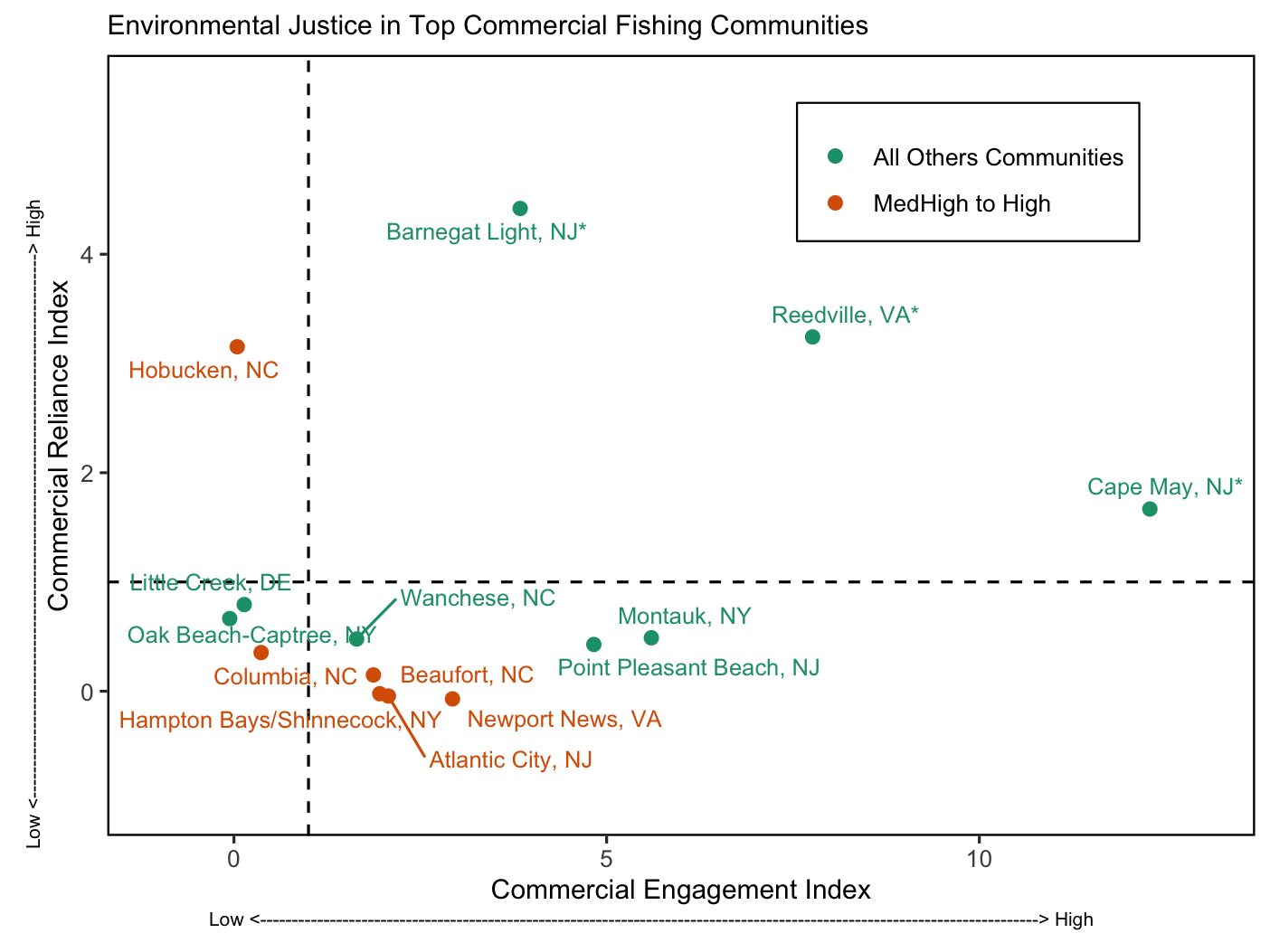

Indicators: Environmental justice vulnerability, commercial fishery engagement and reliance
.pull-left[
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-19-1.png" width="468" style="display: block; margin: auto;" />
Mid-Atlantic commercial fishing communities
]

.pull-right[

]

Implications: Highlighted communities may be vulnerable to changes in fishing patterns due to regulations and/or climate change. When also experiencing environmental justice issues, they may have lower ability to successfully respond to change.

???
These plots provide a snapshot of the presence of environmental justice issues in the most highly engaged and most highly reliant commercial and recreational fishing communities in the Mid-Atlantic. These communities may be vulnerable to changes in fishing patterns due to regulations and/or climate change. When any of these communities are also experiencing social vulnerability including environmental justice issues, they may have lower ability to successfully respond to change.
---
## Objective: Environmental Justice and Social Vulnerability &emsp; Risk element: Social, unchanged

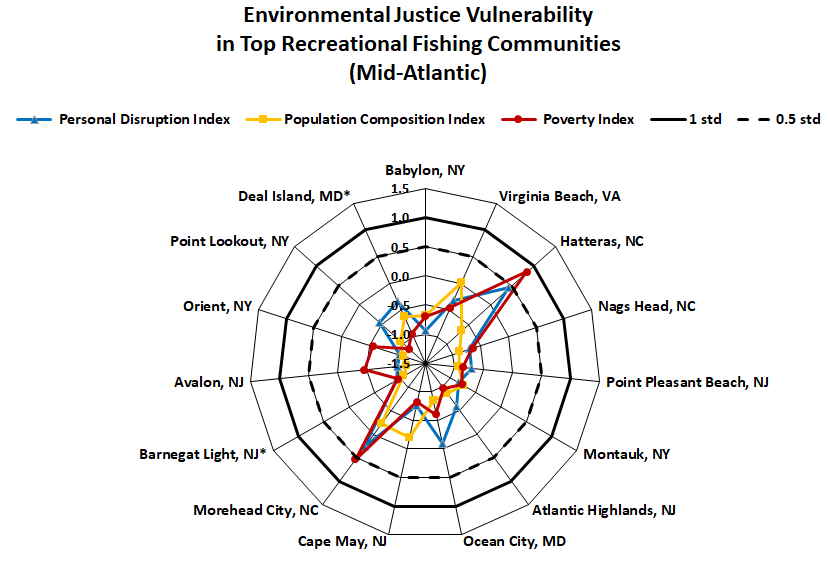

Indicators: Environmental justice vulnerability, recreational fishery engagement and reliance
.pull-left[
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-21-1.png" width="468" style="display: block; margin: auto;" />
Mid-Atlantic recreational fishing communities
]

.pull-right[
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-22-1.png" width="100%" style="display: block; margin: auto;" />

]

---
## Objectives: Protected species *Maintain bycatch below thresholds* ![:img mixed trend icon, 2%](EDAB_images/Mixed trends.png) ![:img meeting objectives icon, 2%](EDAB_images/checked.png)

.pull-left[

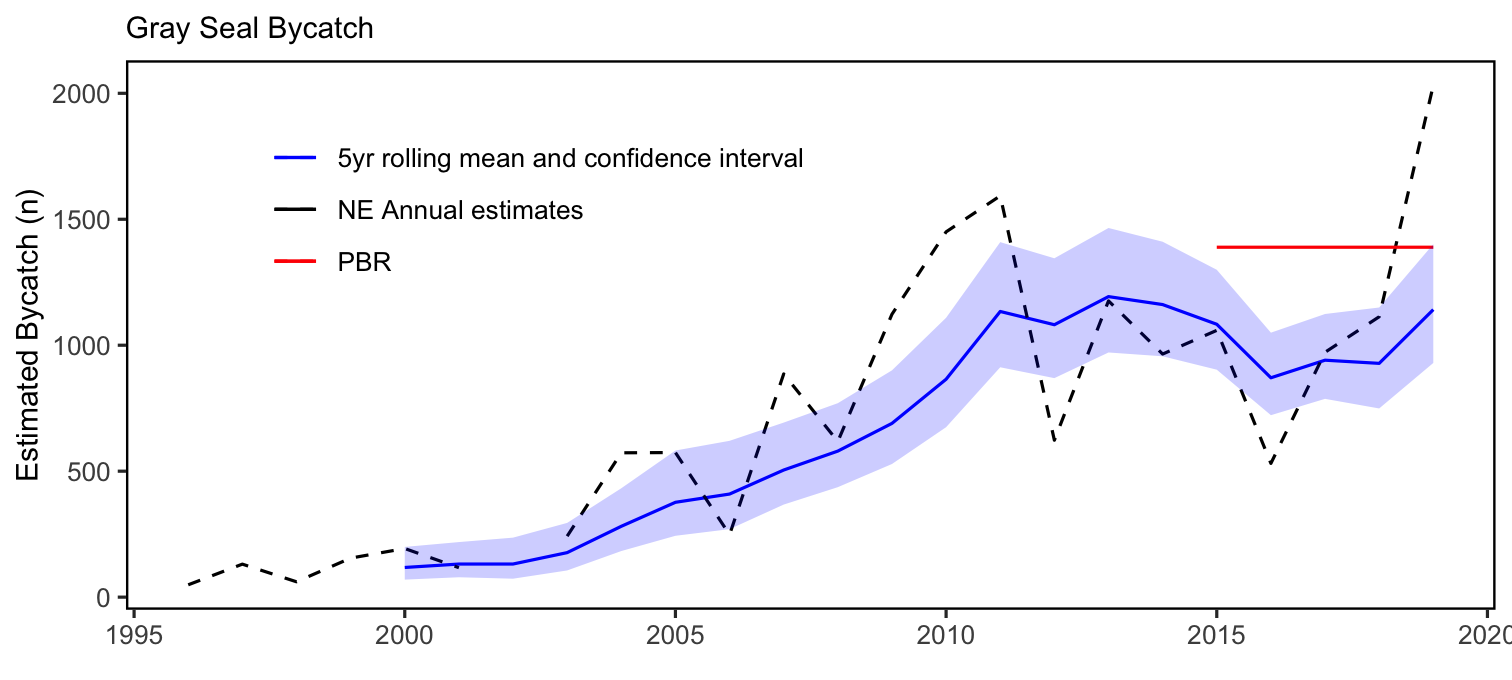

Indicators: Harbor porpoise and gray seal bycatch
.reduced_opacity[
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-23-1.png" width="504" style="display: block; margin: auto;" />

<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-24-1.png" width="504" style="display: block; margin: auto;" />
]
]

.pull-right[
Implications:

* Currently meeting objectives

* Risk element: TechInteract, evaluated by species and sector: 14 low, 6 low-mod, 3 mod-high risk, unchanged

* The downward trend in harbor porpoise bycatch can also be due to a decrease in harbor porpoise abundance in US waters, reducing their overlap with fisheries, and a decrease in gillnet effort.

* The increasing trend in gray seal bycatch may be related to an increase in the gray seal population (U.S. pup counts).
]

---
## Objectives: Protected species *Recover endangered populations* ![:img decreasing arrow icon, 2%](EDAB_images/decrease.png) ![:img below average icon icon, 2%](EDAB_images/below long term ave.png)

.pull-left[

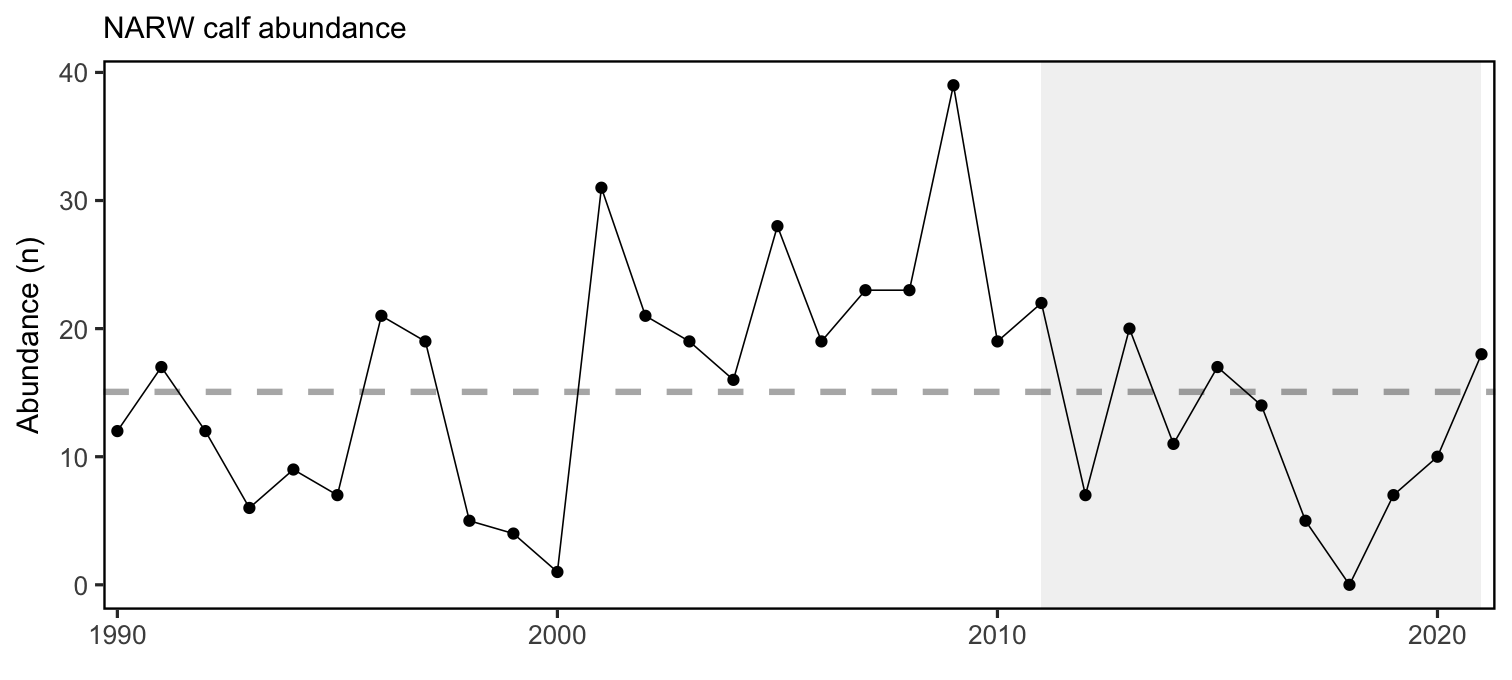

Indicators: North Atlantic right whale population, calf counts
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-25-1.png" width="504" style="display: block; margin: auto;" />

<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-26-1.png" width="504" style="display: block; margin: auto;" />
]

.pull-right[
Implications:

* Population drivers for North Atlantic Right Whales (NARW) include combined fishery interactions/ship strikes, distribution shifts, and copepod availability.

* Additional potential stressors include offshore wind development, which overlaps with important habitat areas used year-round by right whales, including mother and calf migration corridors and foraging habitat.

* Unusual mortality events continue for 3 large whale species.

]

---
# Risks to meeting fishery management objectives

.center[
![:img Climate icon made by EDAB, 25%](EDAB_images/3_CLIMATE.png) &nbsp; &nbsp; &nbsp; ![:img Wind icon made by EDAB, 25%](EDAB_images/24.WIND.png)
]

.center[
![:img Hydrography icon made by EDAB, 15%](EDAB_images/1_HYDROGRAPHY.png) &nbsp; &nbsp; &nbsp; ![:img Phytoplankon icon made by EDAB, 15%](EDAB_images/9_PHYTOPLANKTON.png) &nbsp; &nbsp; &nbsp; ![:img Forage fish icon made by EDAB, 15%](EDAB_images/13_FORAGEFISH.png) &nbsp; &nbsp; &nbsp; ![:img Apex predators icon made by EDAB, 15%](EDAB_images/17.APEXPREDATORS.png)  &nbsp; &nbsp; &nbsp; ![:img Other human uses icon made by EDAB, 15%](EDAB_images/8_OTHERHUMANUSES.png)
]

---
background-image: url("EDAB_images/seasonal-sst-anom-gridded-2021.png")
background-size: 700px
background-position: right top

## Risks: Climate change
.pull-left[

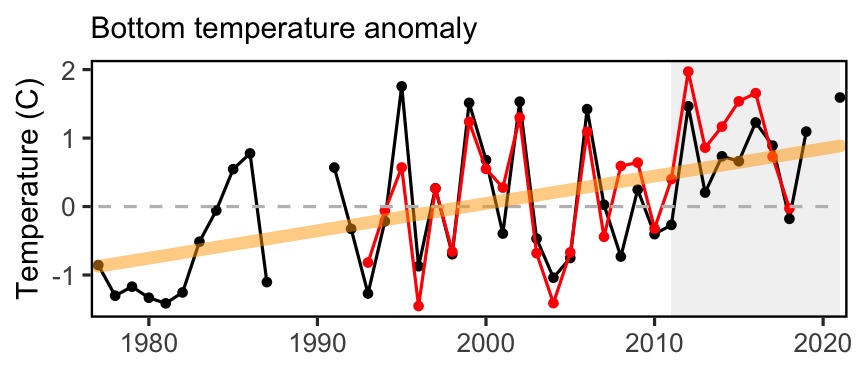

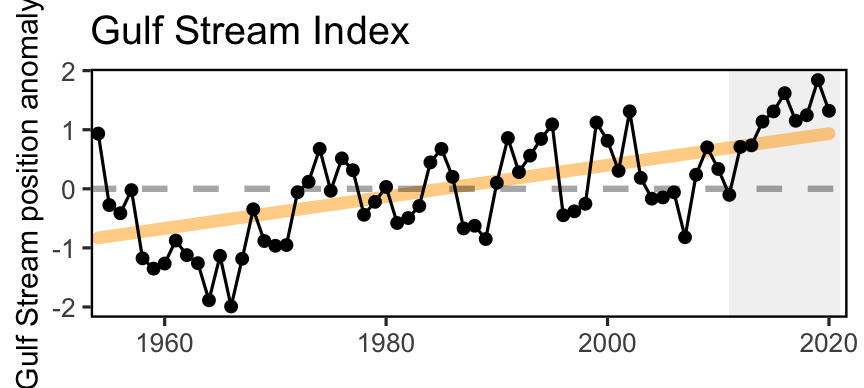

Indicators: ocean currents, bottom and surface temperature, marine heatwaves
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-27-1.png" width="288" style="display: block; margin: auto;" />

<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-29-1.png" width="504" style="display: block; margin: auto;" />
]

.pull-right[

&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;
&nbsp;

]
???

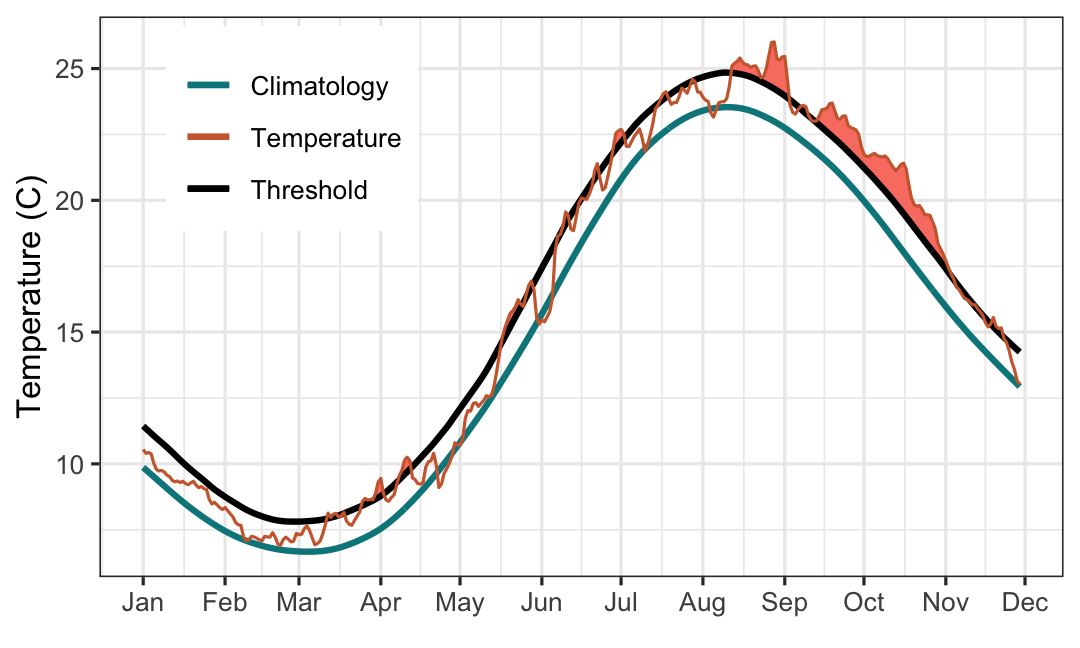

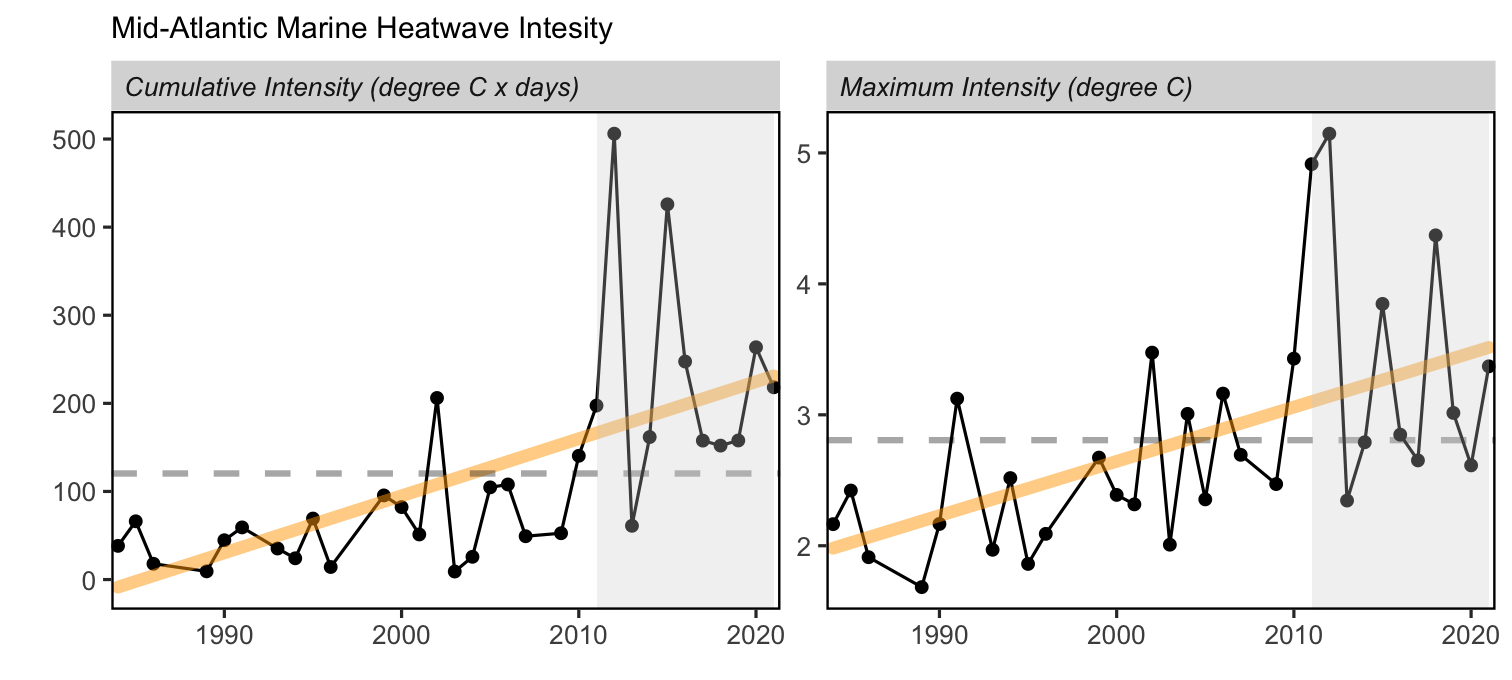

A marine heatwave is a warming event that lasts for five or more days with sea surface temperatures above the 90th percentile of the historical daily climatology (1982-2011).
---
## Risks: Climate change and estuarine habitat &emsp; Risk element: EstHabitat 11 low, 4 high risk species

.pull-left[

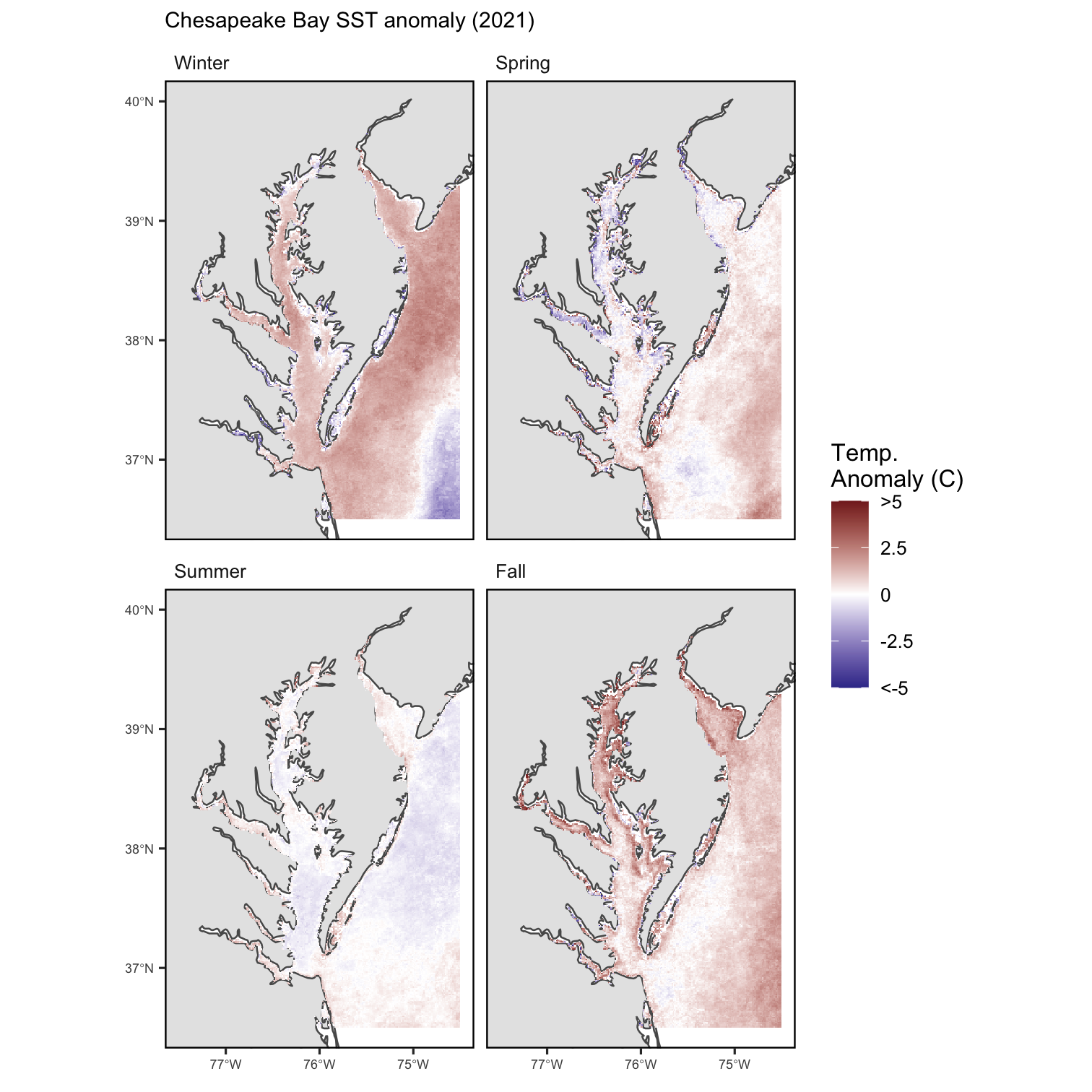

Indicators: Chesapeake Bay temperature and salinity
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-31-1.png" width="504" style="display: block; margin: auto;" />

<!--
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-32-1.png" width="360" style="display: block; margin: auto;" />

<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-33-1.png" width="360" style="display: block; margin: auto;" />
![:img 150%](EDAB_images/ches-bay-sst-1.png)-->
]

.pull-right[
Indicator: SAV trends in Chesapeake Bay
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-34-1.png" width="432" style="display: block; margin: auto;" />

Indicator: Water quality attainment
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-35-1.png" width="432" style="display: block; margin: auto;" />
]

---
## Risks: Climate change and offshore habitat &emsp; Risk element: offshore habitat put aside, new indices
.pull-left[

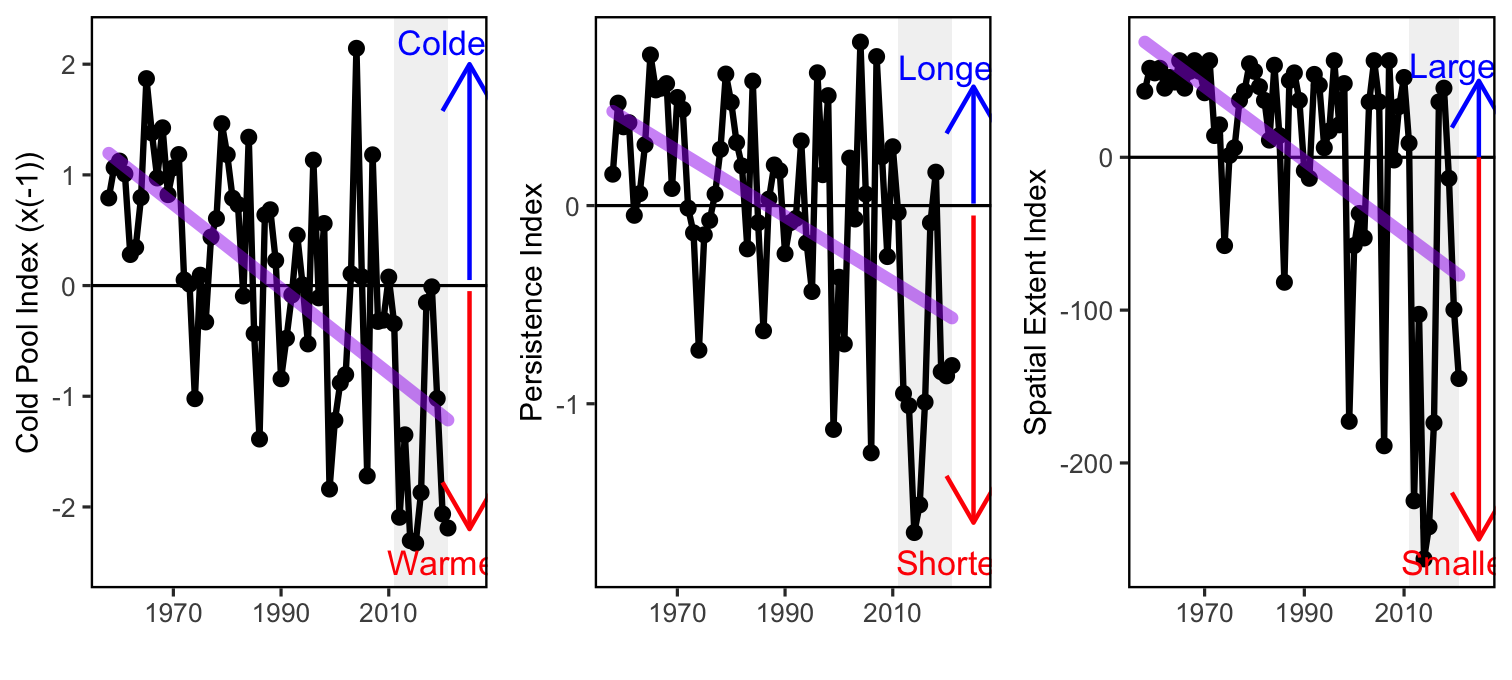

Indicator: cold pool indices
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-36-1.png" width="504" style="display: block; margin: auto;" />

Indicator: Ocean acidification
![:img Seasonal pH](EDAB_images/Saba_Fig_SOE_MAFMC - Grace Saba.png)

]

.pull-right[

Indicator: warm core rings
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-37-1.png" width="504" style="display: block; margin: auto;" />

.center[
![:img Warm core rings June 2021, 90%](EDAB_images/D_20210608-MUR-SST-WCR.PNG)
]
]

---
## Risks: Ecosystem productivity &emsp; Risk element: EcoProd, unchanged, new indices

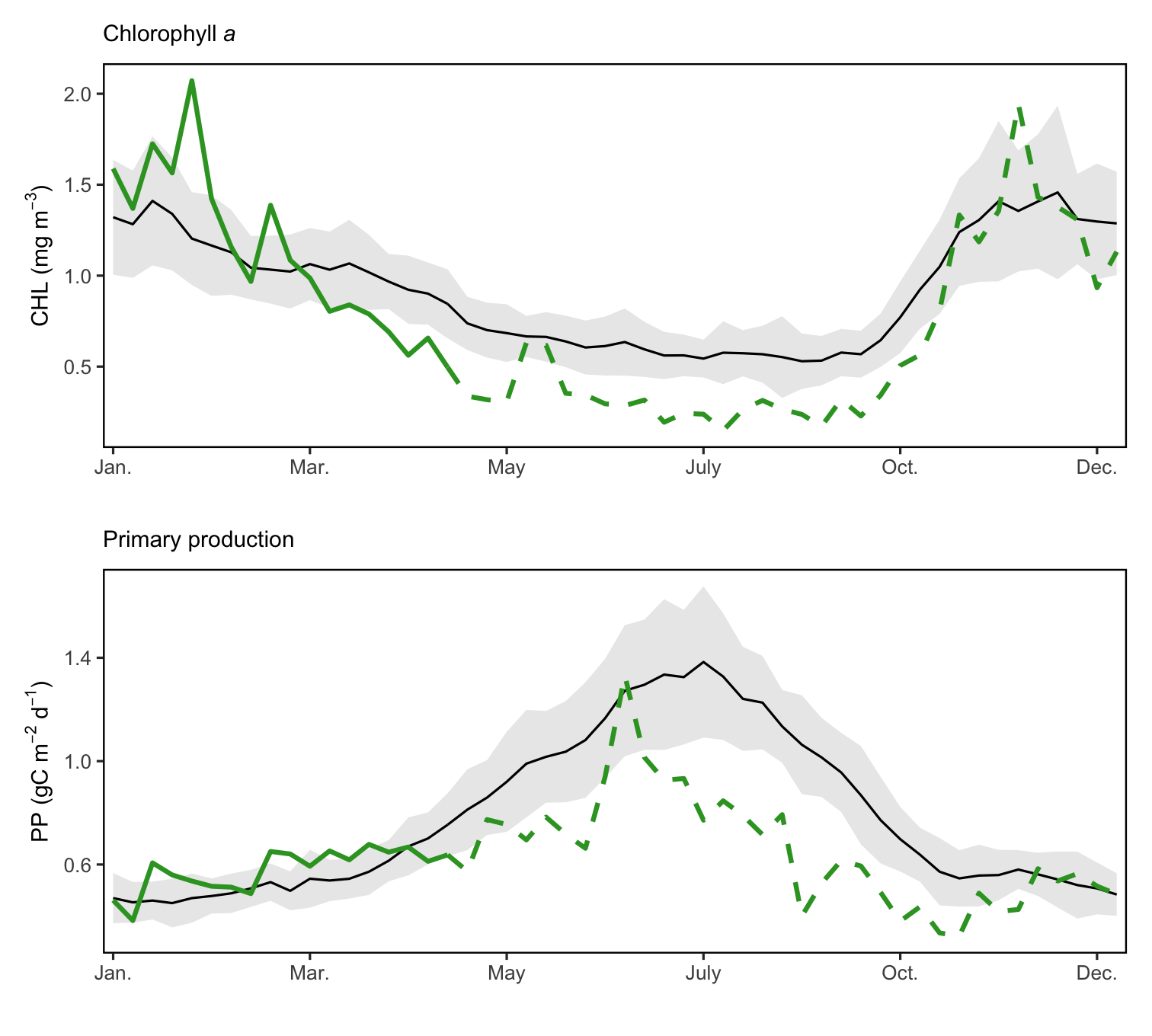

Indicators: chlorophyll, primary production, zooplankton

.pull-left[
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-38-1.png" width="504" style="display: block; margin: auto;" />

]

.pull-right[

.reduced_opacity[
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-40-1.png" width="576" style="display: block; margin: auto;" />

]

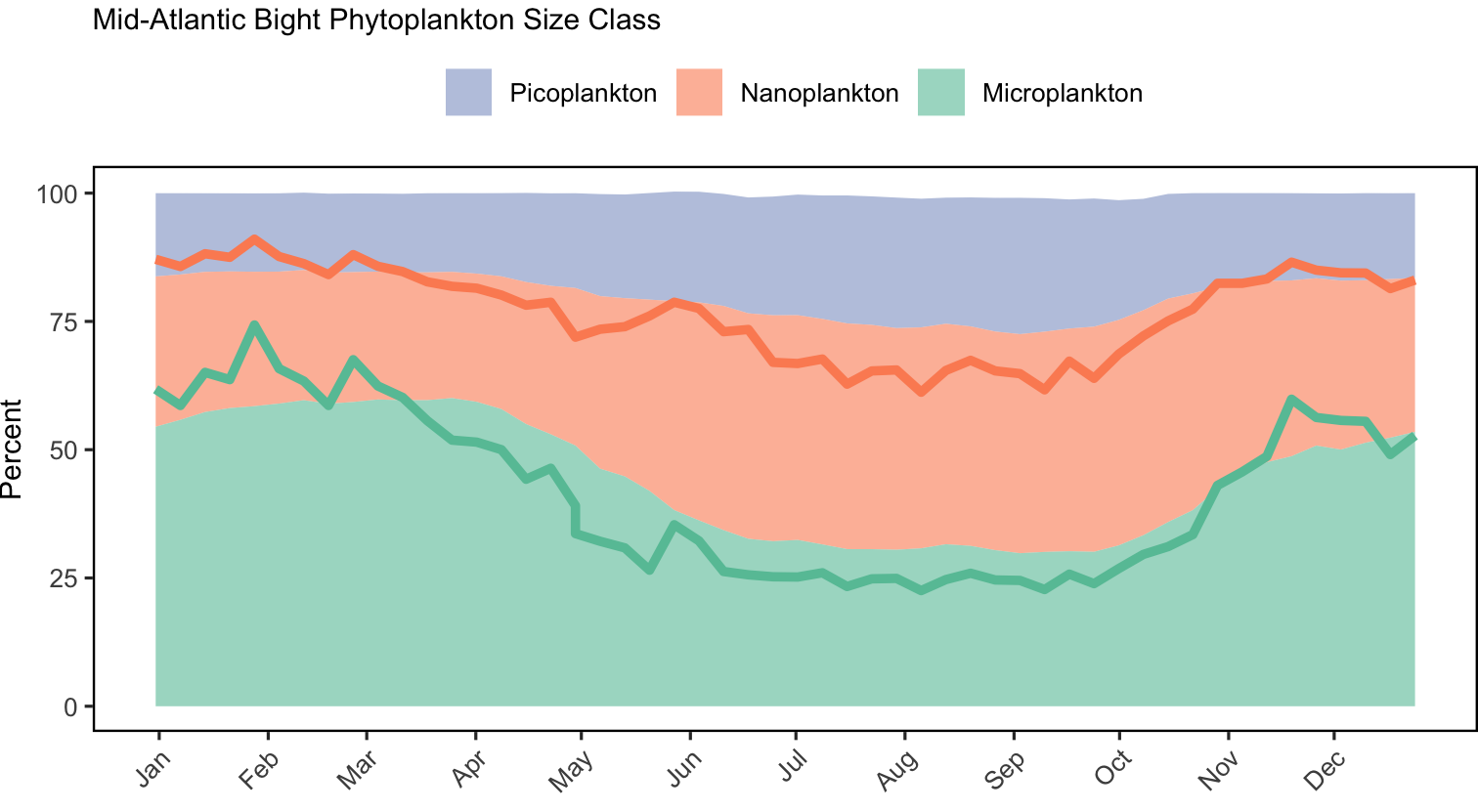

Implications: increased production by smaller phytoplankton implies less efficient transfer of primary production to higher trophic levels. Monitor implications of increasing gelatinous zooplankton and krill.

???
Below average phytoplankton biomass could be due to reduced nutrient flow to the surface and/or increased grazing pressure. A short fall bloom was detected in November. Primary productivity (the rate of photosynthesis) was average to below average throughout 2021

---
## Risks: Ecosystem productivity &emsp; Risk element: EcoProd, unchanged, new indices

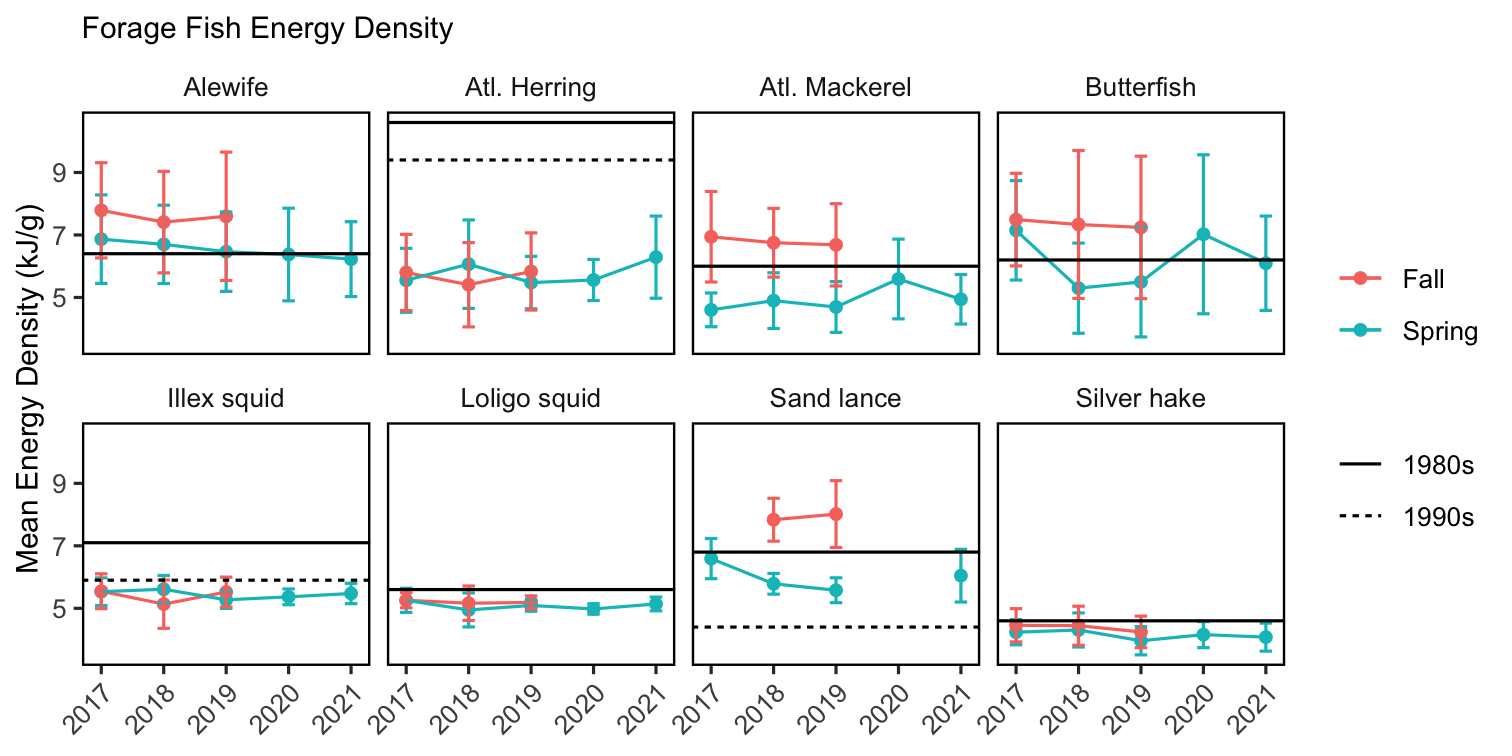

Implications: fluctuating environmental conditions and prey for forage species affect both abundance and energy content. Energy content varies by season, and has changed over time most dramatically for Atlantic herring

---
## Risks: Ecosystem productivity &emsp; Risk element: EcoProd, unchanged, new analyses

.pull-left[
Indicator: fish condition
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-42-1.png" width="120%" style="display: block; margin: auto;" />

]

.pull-right[
Indicator: fish productivity anomaly
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-43-1.png" width="504" style="display: block; margin: auto;" />

]

Implications:
Most species in the MAB had below average or poor condition again in 2021. Preliminary results of synthetic analyses show that changes in temperature, zooplankton, fishing pressure, and population size influence the condition of different fish species.

???

---
## Risks: Ecosystem structure &emsp; add new risk assessment elements?

Indicators: distribution shifts, diversity, predator status and trends
.pull-left[
*No trend in aggregate sharks*
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-44-1.png" width="504" style="display: block; margin: auto;" />

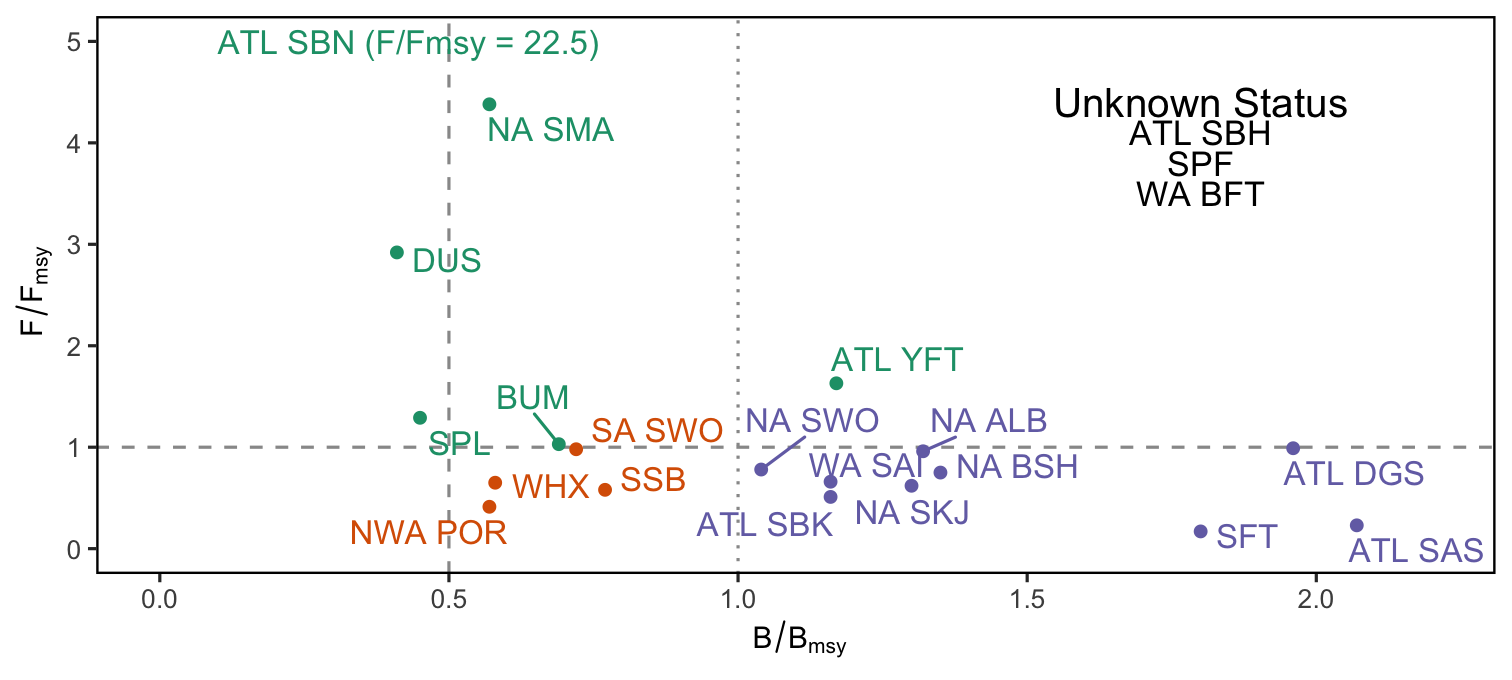

*HMS populations mainly at or above target*
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-45-1.png" width="504" style="display: block; margin: auto;" />

]
.pull-right[

*Gray seals increasing (details in NE report)*

* Breeding season ~ 27,000 US gray seals, Canada's population ~ 425,000 (2016)
* Canada's population increasing at ~ 4% per year
* U.S. pupping sites increased from 1 (1988) to 9 (2019)
* Harbor and gray seals are generalist predators that consume more than 30 different prey species: red, white and silver hake, sand lance, yellowtail flounder, four-spotted flounder, Gulf-stream flounder, haddock, herring, redfish, and squids.

Implications: stable predator populations suggest stable predation pressure on managed species, but increasing predator populations may reflect increasing predation pressure.
]

???
A survey conducted in 2021 in both countries will provide updated estimates of abundance.

---
## Implications: Climate change and managed species &emsp; Risk elements unchanged, new info:

.pull-left[
Climate: 6 low, 3 low-mod, 4 mod-high, 1 high risk

*Multiple drivers with different impacts by species*
* Seasonal estuarine conditions affect life stages of striped bass, blue crabs, summer flounder, black sea bass differently
.contrib[

+ Chesapeake summer hypoxia, temperature better than in past years, but worse in fall
+ Habitat improving in some areas (tidal fresh SAV, oyster reefs), but eelgrass declining
]
* Ocean acidification impact on vulnerable surfclams
.contrib[

+ Areas of low pH identified in surfclam and scallop habitat
+ Lab work identified pH thresholds for surfclam growth
]
* Warm core rings important to *Illex* availability. Fishing effort concentrates on the eastern edge of warm core rings, where upwelling and enhanced productivity ocurr

]

.pull-right[
DistShift: 2 low, 9 mod-high, 3 high risk species

Shifting species distributions alter both species interactions, fishery interactions, and expected management outcomes from spatial allocations and bycatch measures based on historical fish and protected species distributions.
.center[
![:img black sea bass survey distribution change over time from 2018 SOE, 65%](EDAB_images/black_sea_bass_kde.png)
]
]

---
## Risks: Offshore Wind Development &emsp; Element: OceanUse

.pull-left[
Indicators: development timeline, fishery and community specific revenue in lease areas

]

.pull-right[
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-48-1.png" width="504" style="display: block; margin: auto;" />

]

---
background-image: url("EDAB_images/offshore_wind_timeline.png")
background-size: 500px
background-position: right

## Risks: Offshore Wind Development &emsp; Element: OceanUse

.pull-left[
Implications:
*  1-31% of port revenue from fisheries currently comes from areas proposed for offshore wind development. Some communities have environmental justice concerns and gentrification vulnerability.
*  Up to 20% of annual commercial landings and revenue for Mid-Atlantic species occur in lease areas.
*  Development will affect species differently, negatively affecting species that prefer soft bottom habitat while potentially benefiting species that prefer hard structured habitat.
*  Planned wind areas overlap with one of the only known right whale foraging habitats, and altered local oceanography could affect right whale prey availability. Development also brings increased vessel strike risk and the potential impacts of pile driving noise.
]
.pull-right[]

???
Current plans for rapid buildout of offshore wind in a patchwork of areas spreads the impacts differentially throughout the region
Evaluating the impacts to scientific surveys has begun.
---
## EAFM Risk Assessment: 2022 Update

.pull-left[
*Species level risk elements*
<table class="risktable table" style="font-size: 9px; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> Species </th>
 <th style="text-align:left;"> Assess </th>
 <th style="text-align:left;"> Fstatus </th>
 <th style="text-align:left;"> Bstatus </th>
 <th style="text-align:left;"> FW1Pred </th>
 <th style="text-align:left;"> FW1Prey </th>
 <th style="text-align:left;"> FW2Prey </th>
 <th style="text-align:left;"> Climate </th>
 <th style="text-align:left;"> DistShift </th>
 <th style="text-align:left;"> EstHabitat </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> Ocean Quahog </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Surfclam </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Summer flounder </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> highest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Scup </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> highest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Black sea bass </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> highest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Atl. mackerel </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Chub mackerel </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Butterfish </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Longfin squid </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Shortfin squid </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Golden tilefish </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Blueline tilefish </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Bluefish </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> highest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Spiny dogfish </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Monkfish </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Unmanaged forage </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> na </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Deepsea corals </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> na </td>
 </tr>
</tbody>
</table>
.contrib[
* Chub mackerel were added to the table
]

*Ecosystem level risk elements*
<table class="risktable table" style="font-size: 9px; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> System </th>
 <th style="text-align:left;"> EcoProd </th>
 <th style="text-align:left;"> CommRev </th>
 <th style="text-align:left;"> RecVal </th>
 <th style="text-align:left;"> FishRes1 </th>
 <th style="text-align:left;"> FishRes4 </th>
 <th style="text-align:left;"> FleetDiv </th>
 <th style="text-align:left;"> Social </th>
 <th style="text-align:left;"> ComFood </th>
 <th style="text-align:left;"> RecFood </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> Mid-Atlantic </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> modhigh </td>
 </tr>
</tbody>
</table>
.contrib[
* Recreational value risk decreased from high to low-moderate
]
]

.pull-right[
*Species and Sector level risk elements*
<table class="risktable table" style="font-size: 11px; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> Species </th>
 <th style="text-align:left;"> MgtControl </th>
 <th style="text-align:left;"> TecInteract </th>
 <th style="text-align:left;"> OceanUse </th>
 <th style="text-align:left;"> RegComplex </th>
 <th style="text-align:left;"> Discards </th>
 <th style="text-align:left;"> Allocation </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> Ocean Quahog-C </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Surfclam-C </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Summer flounder-R </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> highest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Summer flounder-C </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Scup-R </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> highest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Scup-C </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Black sea bass-R </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> highest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Black sea bass-C </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Atl. mackerel-R </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Atl. mackerel-C </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> highest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Butterfish-C </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Longfin squid-C </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> highest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Shortfin squid-C </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> highest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Golden tilefish-R </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Golden tilefish-C </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Blueline tilefish-R </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Blueline tilefish-C </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Bluefish-R </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> highest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Bluefish-C </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Spiny dogfish-R </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Spiny dogfish-C </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Chub mackerel-C </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowmod </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Unmanaged forage </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 <td style="text-align:left;"> lowest </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Deepsea corals </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> modhigh </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> na </td>
 <td style="text-align:left;"> na </td>
 </tr>
</tbody>
</table>
.contrib[
* 4 Allocation risks decreased from high to low
* 4 Regulatory complexity risks decreased, 2 increased
* Management control risk increased for blueline tilefish fisheries to low-moderate
]
]

???
Changes:
Recreational value decreased from high to low-mod
Allocation risk decreased for 4 fisheries from high to low (intermediate rankings not applied)
Black sea bass regulatory complexity risk decreased from highest to moderate-high

Potential new indicators from new SOE sections on climate risk, habitat vulnerability, offshore wind

Habitat vulnerability analysis writeups--comments?

---
background-image: url("EDAB_images/noaa-iea.png")
background-size: 350px
background-position: right bottom

## THANK YOU! SOEs made possible by (at least) 61 contributors from 14 institutions

.pull-left[
.contrib[
Kimberly Bastille
Aaron Beaver (Anchor QEA)
Andy Beet
Ruth Boettcher (Virginia Department of Game and Inland Fisheries)
Mandy Bromilow (NOAA Chesapeake Bay Office)
Zhuomin Chen (Woods Hole Oceanographic Institution)
Joseph Caracappa
Doug Christel (GARFO)
Patricia Clay
Lisa Colburn
Jennifer Cudney (NMFS Atlantic HMS Management Division)
Tobey Curtis (NMFS Atlantic HMS Management Division)
Geret DePiper
Dan Dorfman (NOAA-NOS-NCCOS)
Hubert du Pontavice
Emily Farr (NMFS Office of Habitat Conservation)
Michael Fogarty
Paula Fratantoni
Kevin Friedland
Marjy Friedrichs (VIMS)
Sarah Gaichas
Ben Galuardi (GARFO)
Avijit Gangopadhyay (School for Marine Science and Technology, University of Massachusetts Dartmouth)
James Gartland (Virginia Institute of Marine Science)
Glen Gawarkiewicz (Woods Hole Oceanographic Institution)
Sean Hardison
Kimberly Hyde
John Kosik
Steve Kress (National Audubon Society’s Seabird Restoration Program)
Young-Oh Kwon (Woods Hole Oceanographic Institution)

]
]

.pull-right[
.contrib[
Scott Large
Andrew Lipsky
Sean Lucey
Don Lyons (National Audubon Society’s Seabird Restoration Program)
Chris Melrose
Shannon Meseck
Ryan Morse
Brandon Muffley (MAFMC)
Kimberly Murray
Chris Orphanides
Richard Pace
Tom Parham (Maryland DNR)
Charles Perretti
CJ Pellerin (NOAA Chesapeake Bay Office)
Grace Roskar (NMFS Office of Habitat Conservation)
Grace Saba (Rutgers)
Vincent Saba
Sarah Salois
Chris Schillaci (GARFO)
Dave Secor (CBL)
Angela Silva
Adrienne Silver (UMass/SMAST)
Emily Slesinger (Rutgers University)
Laurel Smith
Talya tenBrink (GARFO)
Bruce Vogt (NOAA Chesapeake Bay Office)
Ron Vogel (UMD Cooperative Institute for Satellite Earth System Studies and NOAA/NESDIS Center for Satellite Applications and Research)
John Walden
Harvey Walsh
Changhua Weng
Mark Wuenschel

]
]

---
## References

.contrib[
<a name=bib-bastille_improving_2020></a>[Bastille, K. et
al.](#cite-bastille_improving_2020) (2020). "Improving the IEA Approach
Using Principles of Open Data Science". In: _Coastal Management_ 0.0.
Publisher: Taylor & Francis \_ eprint:
https://doi.org/10.1080/08920753.2021.1846155, pp. 1-18. ISSN:
0892-0753. DOI:
[10.1080/08920753.2021.1846155](https://doi.org/10.1080%2F08920753.2021.1846155).
URL:
[https://doi.org/10.1080/08920753.2021.1846155](https://doi.org/10.1080/08920753.2021.1846155)
(visited on Dec. 09, 2020).

<a name=bib-depiper_operationalizing_2017></a>[DePiper, G. S. et
al.](#cite-depiper_operationalizing_2017) (2017). "Operationalizing
integrated ecosystem assessments within a multidisciplinary team:
lessons learned from a worked example". En. In: _ICES Journal of Marine
Science_ 74.8, pp. 2076-2086. ISSN: 1054-3139. DOI:
[10.1093/icesjms/fsx038](https://doi.org/10.1093%2Ficesjms%2Ffsx038).
URL:
[https://academic.oup.com/icesjms/article/74/8/2076/3094701](https://academic.oup.com/icesjms/article/74/8/2076/3094701)
(visited on Mar. 09, 2018).

<a name=bib-muffley_there_2020></a>[Muffley, B. et
al.](#cite-muffley_there_2020) (2020). "There Is no I in EAFM Adapting
Integrated Ecosystem Assessment for Mid-Atlantic Fisheries Management".
In: _Coastal Management_ 0.0. Publisher: Taylor & Francis \_ eprint:
https://doi.org/10.1080/08920753.2021.1846156, pp. 1-17. ISSN:
0892-0753. DOI:
[10.1080/08920753.2021.1846156](https://doi.org/10.1080%2F08920753.2021.1846156).
URL:
[https://doi.org/10.1080/08920753.2021.1846156](https://doi.org/10.1080/08920753.2021.1846156)
(visited on Dec. 09, 2020).
]

## Additional resources
.pull-left[
* [ecodata R package](https://github.com/noaa-edab/ecodata)

* Visualizations:
  * [Mid-Atlantic Human Dimensions indicators](http://noaa-edab.github.io/ecodata/human_dimensions_MAB)
  * [Mid-Atlantic Macrofauna indicators](http://noaa-edab.github.io/ecodata/macrofauna_MAB)
  * [Mid-Atlantic Lower trophic level indicators](https://noaa-edab.github.io/ecodata/LTL_MAB)
]
.pull-right[
* [SOE Reports on the web](https://www.fisheries.noaa.gov/new-england-mid-atlantic/ecosystems/state-ecosystem-reports-northeast-us-shelf)

* [SOE Technical Documentation](https://noaa-edab.github.io/tech-doc)

* [Draft indicator catalog](https://noaa-edab.github.io/catalog/)

.contrib[

* Slides available at https://noaa-edab.github.io/presentations
* Contact: <Sarah.Gaichas@noaa.gov>
]
]

---
background-image: url("EDAB_images/SOE-MA-final-03.23.22-no marks_Page_1.png")
background-size: 600px
background-position: bottom right

# Discussion

## Improve utility to the Council

.pull-left[
1. Fishery performance at the ecosystem level:
    - Capturing factors influencing recent catch?
    - Current management appropriate? How to improve?
    - Recommended research priorities?
    - What else is important to know?

1. Feedback on EAFM risk assessment update, and priorities for risk assessment review?
    - New elements
    - New indicators for existing elements
    - Revisit risk criteria

# Thank you!
]

???
1. Feedback on State of the Ecosystem report?
    - Structure
    - Content
    - Synthesis themes
1. Feedback on Request memo points?
    - 1 to 7 included in SOE
    - 7 to 27 in progress
    - 28 to 45 less progress

---

.center[
# Extra slides
]

---
## Objective: Stability ![:img no trend icon, 2%](EDAB_images/no trend.png) ![:img near average icon icon, 1%](EDAB_images/near long term average.png) &emsp; Risk elements: FishRes1 and FleetDiv, unchanged, add recreational elements?

.pull-left[
*Fishery*  Indicators: Commercial fleet count, fleet diversity

]

.pull-right[
*Fishery* Indicators: commercial species revenue diversity, recreational species catch diversity
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-50-1.png" width="504" style="display: block; margin: auto;" />

]
---
## Objective: Stability ![:img mixed trend icon, 2%](EDAB_images/Mixed trends.png) ![:img near average icon icon, 1%](EDAB_images/near long term average.png) &emsp; Risk element: ecological diversity put aside, new indices

.pull-left[
*Ecological* Indicators: zooplankton diversity
.reduced_opacity[
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-52-1.png" width="504" style="display: block; margin: auto;" />

]
]

.pull-right[
*Ecological* Indicator: expected number of species, NEFSC bottom trawl survey
<img src="20220405_MAFMC_Gaichas_files/figure-html/unnamed-chunk-53-1.png" width="504" style="display: block; margin: auto;" />

Implications:
* stable capacity to respond to the current range of commercial fishing opportunities
* recreational catch diversity maintained by a different set of species over time
* monitor zooplankton diversity driven by declining dominant species

]
???
While larval and adult fish diversity indices are stable, a few warm-southern larval species are becoming more dominant. Increasing zooplankton diversity is driven by declining dominance of an important species, which warrants continued monitoring.

---
## Risks: Habitat climate vulnerability &emsp; New, opportunity to refine habitat risks

Indicators: climate sensitive species life stages mapped to climate vulnerable habitats

*See MAFMC 2022 EAFM risk assessment for example species narratives*
<div id="htmlwidget-ee4750cc1420fbbda2bf" style="width:100%;height:226.8px;" class="widgetframe html-widget"></div>
<script type="application/json" data-for="htmlwidget-ee4750cc1420fbbda2bf">{"x":{"url":"20220405_MAFMC_Gaichas_files/figure-html//widgets/widget_midHabTable.html","options":{"xdomain":"*","allowfullscreen":false,"lazyload":false}},"evals":[],"jsHooks":[]}</script>
